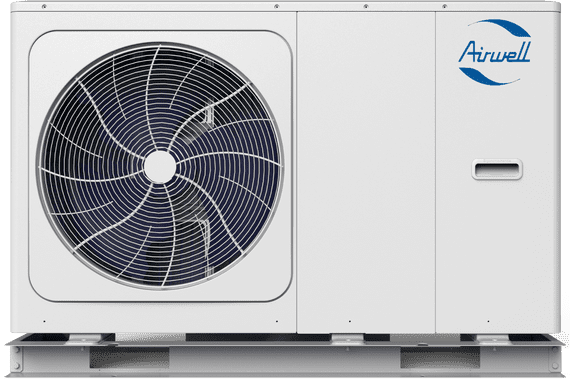

Airwell Single Phase Monobloc

Product Description

​​​​​All the Airwell units are on the MCS database.

The single phase units are on the ENA Database,

All the relevant reference numbers are in the QS Install manual,

The units without the IBH (Inbuilt Backup Heater) are now Connect and Notify. There are some units with an IBH available (not listed here) but they are not Connect and Notify.

Specifications

MPN
AW-WHPMA04-H91
Product Code
78500104

​​​​​All the Airwell units are on the MCS database.

The single phase units are on the ENA Database,

All the relevant reference numbers are in the QS Install manual,

The units without the IBH (Inbuilt Backup Heater) are now Connect and Notify. There are some units with an IBH available (not listed here) but they are not Connect and Notify.
MPN
AW-WHPMA04-H91
Product Code
78500104
Model Number AW-WHPMA04-H91 AW-WHPMA06-H91 AW-WHPMA08-H91 AW-WHPMA10-H91 AW-WHPMA12-H91 AW-WHPMA14-H91 AW-WHPMA16-H91
Secon Part No. 78500104 78500106 78500108 78500110 78500112 78500114 78500114
MCS Number 041-K015-01C 041-K015-01D 041-K015-02C 041-K015-02D 041-K015-03G 041-K015-03H 041-K015-03J
ENA Number AIRWE/06660/V1 AIRWE/02418/V1 AIRWE/06820/V1 AIRWE/02377/V1 AIRWE/09187/V1 AIRWE/03322/V1 AIRWE/08465/V1
Length 1295mm 1295mm 1385mm 1385mm 1385mm 1385mm 1385mm
Width 397mm 397mm 482mm 482mm 482mm 482mm 482mm
Height 792mm 792mm 945mm 945mm 945mm 945mm 945mm
Weight Net 98kg 98kg 121kg 121kg 144kg 144kg 144kg
Output A-2/W45 4.68kW 5.84kW 7.44kW 8.18kW 10.9kW 12.1kW 13.4kW
Input A-2/W45 1.89kW 2.30kW 2.77kW 3.09kW 4.61kW 4.99kW 5.88kW
Nominal Flow Rate 14.28 l/m 17.14 l/m 22.85 l/m 28.57 l/m 34.28 l/m 40 l/m 45.71 l/m
Connection Size 1" BSP Male 1" BSP Male 1 1/4" Male BSP 1 1/4" Male BSP 1 1/4" Male BSP 1 1/4" Male BSP 1 1/4" Male BSP
Minimum Water Content 40l 40l 40l 40l 40l 40l 40l
Electrical Supply 220-240v 50hz 220-240v 50hz 220-240v 50hz 220-240v 50hz 220-240v 50hz 220-240v 50hz 220-240v 50hz
Refrigerant Type R32 R32 R32 R32 R32 R32 R32
Refrigerant Volume 1.40kg 1.40kG 1.40kg 1.40kg 1.75kg 1.75kg 1.75kg
Sound Power 55dB(A) 55dB(A) 59dB(A) 60dB(A) 65dB(A) 65dB(A) 68dB(A)
Operating Range External -25°c -35°c -25°c -35°c -25°c -35°c -25°c -35°c -25°c -35°c -25°c -35°c -25°c -35°c
Operating Range Water Out 12°c - 65°c  12°c - 65°c  12°c - 65°c  12°c - 65°c  12°c - 65°c  12°c - 65°c  12°c - 65°c
AW-WHPMA04-H91 AW-WHPMA06-H91 AW-WHPMA08-H91 AW-WHPMA10-H91 AW-WHPMA12-H91 AW-WHPMA14-H91 AW-WHPMA16-H91
78500104 78500106 78500108 78500110 78500112 78500114 78500116
Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP
35 4.66 35 4.77 35 5.03 35 5.03 35 4.67 35 4.58 35 4.49
40 4.3 40 4.42 40 4.57 40 4.61 40 4.34 40 4.26 40 4.18
45 3.93 45 4.06 45 4.11 45 4.19 45 4.01 45 3.95 45 3.88
50 3.56 50 3.72 50 3.67 50 3.78 50 3.68 50 3.64 50 3.59
55 3.19 55 3.39 55 3.23 55 3.37 55 3.34 55 3.33 55 3.3

Airwell Single Phase Monobloc

Product Code 78500104
