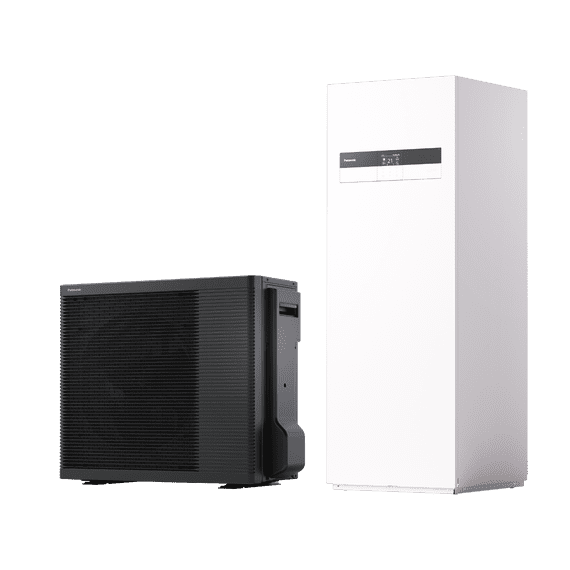

Aquarea High Performance All in One R32 K Series
Aquarea High Performance All in One R32 K Series
Aquarea High Performance All in One R32 K Series

Product Description

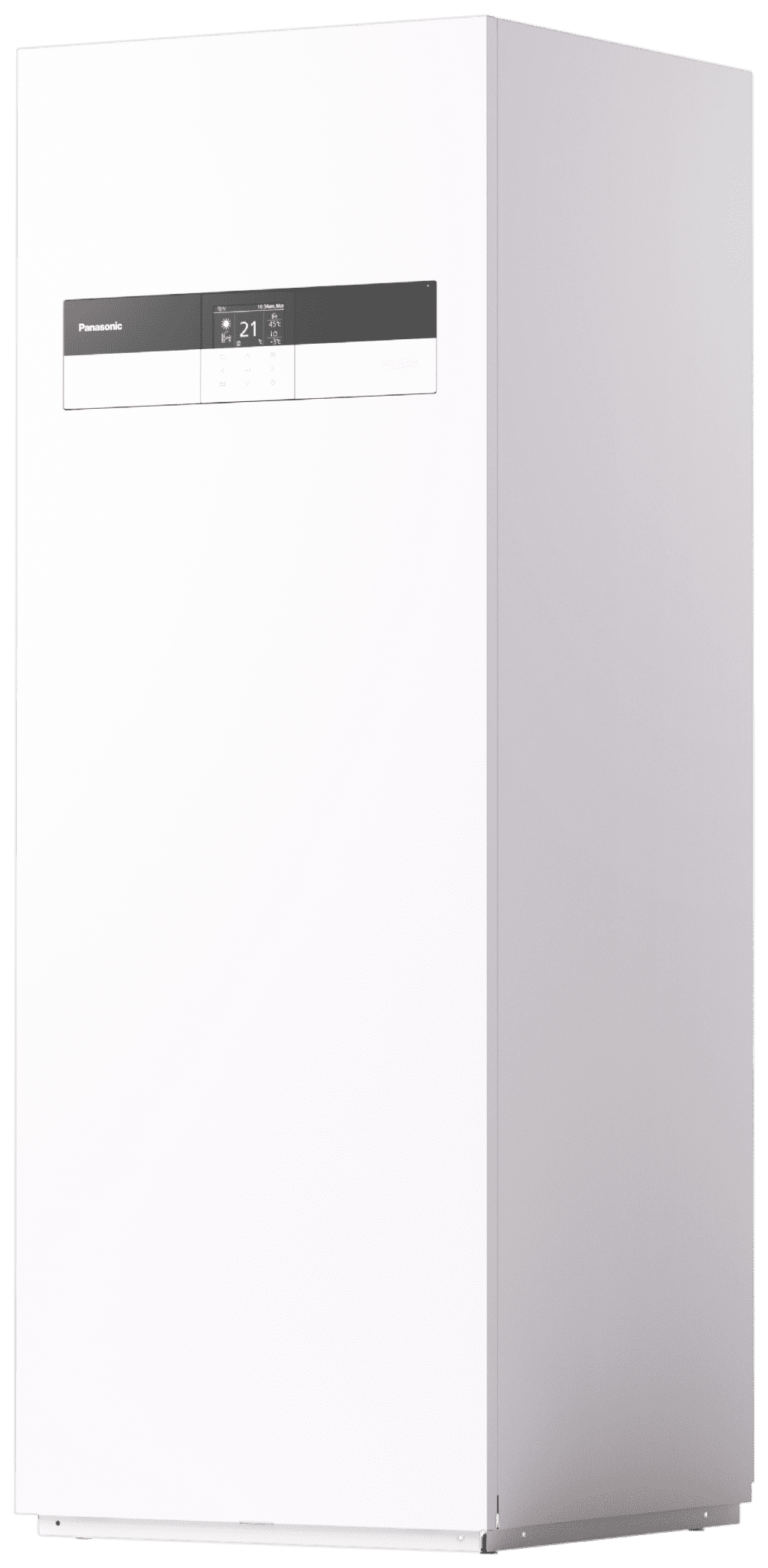

The new Panasonic Aquarea K Series All in One is the ultimate space-saving solution.

With its small 598 x 600 mm footprint, the new All in One Compact can be neatly lined up with other big appliances like a refrigerator and/or washing machine to reduce the space required for installation. And thanks to its low height, it can be installed with a ventilation unit on top

Specifications

MPN
KIT-ADC03K3E5
Product Code
78230103K

The new Panasonic Aquarea K Series All in One is the ultimate space-saving solution.

With its small 598 x 600 mm footprint, the new All in One Compact can be neatly lined up with other big appliances like a refrigerator and/or washing machine to reduce the space required for installation. And thanks to its low height, it can be installed with a ventilation unit on top
MPN
KIT-ADC03K3E5
Product Code
78230103K
Model Number WH-UDZ03KE5 WH-UDZ05KE5 WH-UDZ07KE5 WH-UDZ09KE5
Secon Part No. 78230103K 78230105K 78230107K 78230109K
MCS Number 011-1W0604_01 011-1W0605_01 011-1W0605_02 011-1W0605_03
ENA Number PANAS/09248/V1 PANAS/09115/V1 PANAS/03558/V1 PANAS/09133/V1
Length 824mm 875mm 875mm 875mm
Width 298mm 320mm 320mm 320mm
Height 622mm 795mm 795mm 795mm
Weight Net 37kG 55kG 55kG 55kG
Output A-2/W45 3.25kW 5.00kW 5.65kW 5.65kW
Input A-2/W45 1.47kW 2.14kW 2.30kW 2.30kW
Nominal Flow Rate 8.4l/m 14.3l/m 20.1l/m 25.8l/m
Connection Size 1/4" / 1/2" 1/4" / 5/8" 1/4" / 5/8" 1/4" / 5/8"
Minimum Water Content
Electrical Supply 220-240v 50HZ 220-240v 50HZ 220-240v 50HZ 220-240v 50HZ
Refrigerant Type R32 R32 R32 R32
Refrigerant Volume 0.90kG 1.30kG 1.30kG 1.30kG
Sound Power 60dB(A) 60dB(A) 62dB(A) 62dB(A)
Operating Range External -20/35°C -25/35°C -25/35°C -25/35°C
Operating Range Water Out 20/60°C 20/60°C 20/60°C 20/60°C
WH-UDZ03KE5 WH-UDZ05KE5 WH-UDZ07KE5 WH-UDZ09KE5
78230103K 78230105K 78230107K 78230109K
Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP
35 4.32 35 4.69 35 4.66 35 4.17
40 4.2 40 4.36 40 4.36 40 3.94
45 4.08 45 4.03 45 4.05 45 3.71
50 3.68 50 3.71 50 3.75 50 3.44
55 3.28 55 3.39 55 3.45 55 3.18

Aquarea High Performance All in One R32 K Series

Product Code 78230103K

The new Panasonic Aquarea K Series All in One is the ultimate space-saving solution.
