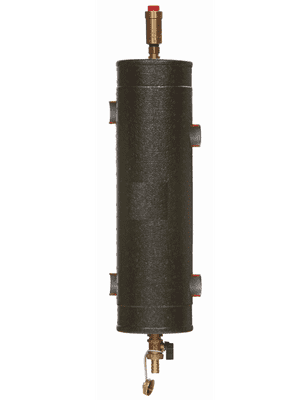

Distribution Low Loss Header

This unit is prepared for 2, 3 or 4 heating circuits.

2DC to supply 2 heating circuits

3DC to supply 3 heating circuits

4DC to supply 4 heating circuits

The whole set consists of the unit itself, the air-vent, drain valve, and the two brackets to place the header on.

Horizontal SKE distribution low loss header

The Distribution low loss header (SKE) separates the boiler circuit from the heating circuit. SKEs are usually applied in medium or high power rating heating systems (generally, from 25 kW upwards), comprising of one or more boilers and particularly those comprised of several heating circuits (e.g. UFH heating , radiator heating and DHW heating circuits). The headers come in a In a condensing version, an additional INOX guide is built-in significantly separating hot and cold water flows. As a consequence, the return water temperature is unable to mix and is reduced helping condensing devices to reach higher efficiency. Moreover, thanks to an inserted neodymium magnet separator (SMART), it stops tiny magnetic shards from being spread into the whole system, something which is directly responsible for causing rust, corrosion and damage to internal system components.
