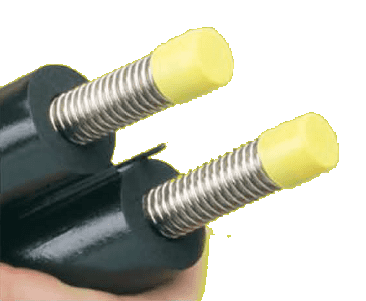

Flexipipe 2 in 2 insulated DN16

Product Description

Our pre-assembled pipe systems with their high-temperature and UV resistant insulation material are an ideal choice for your solar thermal system. The insulated double tube is a flexible quick installation system to connect solar collectors to the pump station and to the storage cylinder. The system is lightweight and space saving, which results in easy handling, even in confined spaces. Flow and return pipes are marked clearly and can easily be separated. Thus, collectors with a large distance between connectors can be connected quick and economically.



2in2 is the way to reduce installation time whilst ensuring a leak-free installation. Two closed cell elastomeric foam extrusions of high-temperature resistant EPDM are reliably protected against mechanical damage by a tough protective sheath.


Technical data

Corrugated stainless steel pipe
1.4404 - AISI316L

 Insulation thickness
14 mm (2in2)


Available from stock

two-core silicone sensor cable

 high-temperature resistant
EPDM up to+150°C continous load(+175°C intermittent)

Heat conductivity
λ (0°C) = 0,038 W/mK
λ (40°C) = 0,042 W/mK
Fire classification
Class E (according to BS EN 13501-1)

Water vapour transmission
µ ≥ 4500 (according to DIN EN ISO 12572)

Specifications

MPN
SEO31016
Product Code
41021610
Our pre-assembled pipe systems with their high-temperature and UV resistant insulation material are an ideal choice for your solar thermal system. The insulated double tube is a flexible quick installation system to connect solar collectors to the pump station and to the storage cylinder. The system is lightweight and space saving, which results in easy handling, even in confined spaces. Flow and return pipes are marked clearly and can easily be separated. Thus, collectors with a large distance between connectors can be connected quick and economically.



2in2 is the way to reduce installation time whilst ensuring a leak-free installation. Two closed cell elastomeric foam extrusions of high-temperature resistant EPDM are reliably protected against mechanical damage by a tough protective sheath.


Technical data

Corrugated stainless steel pipe
1.4404 - AISI316L

 Insulation thickness
14 mm (2in2)


Available from stock

two-core silicone sensor cable

 high-temperature resistant
EPDM up to+150°C continous load(+175°C intermittent)

Heat conductivity
λ (0°C) = 0,038 W/mK
λ (40°C) = 0,042 W/mK
Fire classification
Class E (according to BS EN 13501-1)

Water vapour transmission
µ ≥ 4500 (according to DIN EN ISO 12572)
MPN
SEO31016
Product Code
41021610

Flexipipe 2 in 2 insulated DN16

Product Code 41021610
