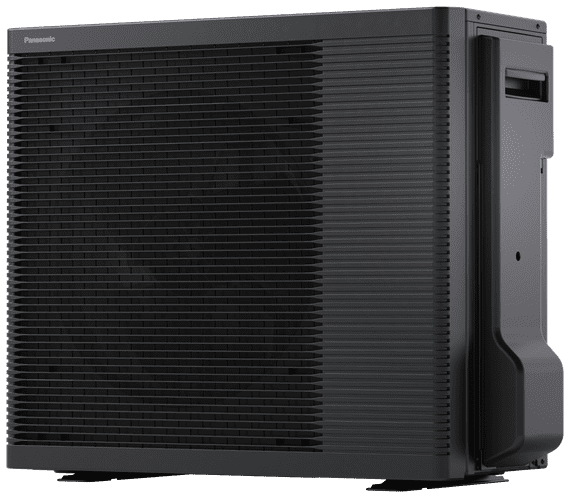

Panasonic Aquarea High Performance Bi-Bloc K Series Single Phase

Product Description

Aquarea K Generation is a ground breaking low-energy system for heating, cooling and domestic hot water production that delivers outstanding performance. This model is ideal for new installations and well-insulated homes.

Specifications

MPN
KIT-WC03K3E5
Product Code
78221103K
Aquarea K Generation is a ground breaking low-energy system for heating, cooling and domestic hot water production that delivers outstanding performance. This model is ideal for new installations and well-insulated homes.
MPN
KIT-WC03K3E5
Product Code
78221103K
Model Number WH-UDZ03KE5 WH-UDZ05KE5 WH-UDZ07KE5 WH-UDZ09KE5
Secon Part No. 78221103K 78221105K 78221107K 78221109K
MCS Number 011-1W0604_02 011-1W0605_04 011-1W0605_05 011-1W0605_06
ENA Number PANAS/01956/V1 PANAS/09150/V1 PANAS/07542/V1 PANAS/07929/V1
Length 824mm 875mm 875mm 875mm
Width 298mm 320mm 320mm 320mm
Height 622mm 795mm 795mm 795mm
Weight Net 37kG 55kG 55kG 55kG
Output A-2/W45 3.25kW 5.00kW 5.65kW 5.65kW
Input A-2/W45 1.47kW 2.14kW 2.30kW 2.30kW
Nominal Flow Rate 8.4l/m 14.3l/m 20.1l/m 25.8l/m
Connection Size 1/4" / 1/2" 1/4" / 5/8" 1/4" / 5/8" 1/4" / 5/8"
Minimum Water Content
Electrical Supply 220-240v 50HZ 220-240v 50HZ 220-240v 50HZ 220-240v 50HZ
Refrigerant Type R32 R32 R32 R32
Refrigerant Volume 0.90kG 1.30kG 1.30kG 1.30kG
Sound Power 60dB(A) 60dB(A) 62dB(A) 62dB(A)
Operating Range External -20/35°C -25/35°C -25/35°C -25/35°C
Operating Range Water Out 20/60°C 20/60°C 20/60°C 20/60°C
WH-UDZ03KE5 WH-UDZ05KE5 WH-UDZ07KE5 WH-UDZ09KE5
78221103K 78221105K 78221107K 78221109K
Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP Flow Temp °C MCS SCOP
35 4.32 35 4.69 35 4.66 35 4.17
40 4.2 40 4.36 40 4.36 40 3.94
45 4.08 45 4.03 45 4.05 45 3.71
50 3.68 50 3.71 50 3.75 50 3.44
55 3.28 55 3.39 55 3.45 55 3.18

Panasonic Aquarea High Performance Bi-Bloc K Series Single Phase

Product Code 78221103K
