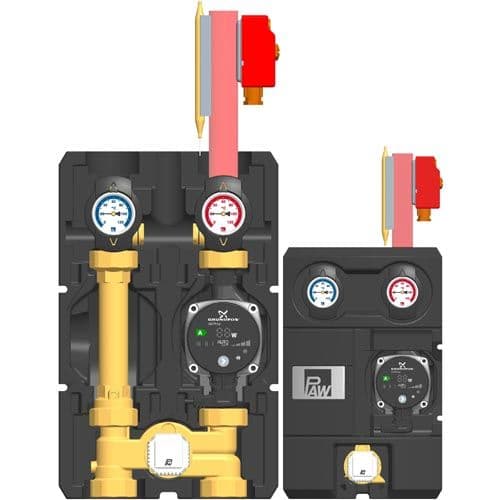

PAW HeatBloc K33 - DN25

Product Description

 • for radiant floor heating
• for low-temperature heating installations

Flat-sealing connections 1½" external thread incl 1½" union nut for the installation on a PAW modular distribution manifold. With PAW mounting equipment the HeatBloCs can be installed on wall brackets. 3-way mixing valve with bypass 0-50 % and thermostat control completely made of brass, controlled by thermostat and sensor, adjusted manually, bypass on the front of the mixing valve. Control range 20°C - 50 °C (standard) or 50°C - 70°C (on request). Thermostat, adjustable in the range of 20°C - 60 °C, when the set temperature is exceeded a switch is activated and shuts off the pump.

Pumps fitted with 2 m cable, pre-installed, ALPHA pump with right-angle plug, completely preassembled, integrated in the insulation, pressure tested, with serial number Check valve in the return pipe can be opened, 200 mm water column, spring-loaded, thus suited for horizontal and overhead installation. Check valve integrated in the mixing valve prevents unwanted circulation.

Specifications

MPN
36073GH6
Brand
PAW
Product Code
23033253
 • for radiant floor heating
• for low-temperature heating installations

Flat-sealing connections 1½" external thread incl 1½" union nut for the installation on a PAW modular distribution manifold. With PAW mounting equipment the HeatBloCs can be installed on wall brackets. 3-way mixing valve with bypass 0-50 % and thermostat control completely made of brass, controlled by thermostat and sensor, adjusted manually, bypass on the front of the mixing valve. Control range 20°C - 50 °C (standard) or 50°C - 70°C (on request). Thermostat, adjustable in the range of 20°C - 60 °C, when the set temperature is exceeded a switch is activated and shuts off the pump.

Pumps fitted with 2 m cable, pre-installed, ALPHA pump with right-angle plug, completely preassembled, integrated in the insulation, pressure tested, with serial number Check valve in the return pipe can be opened, 200 mm water column, spring-loaded, thus suited for horizontal and overhead installation. Check valve integrated in the mixing valve prevents unwanted circulation.
MPN
36073GH6
Brand
PAW
Product Code
23033253

PAW HeatBloc K33 - DN25

Product Code 23033253
