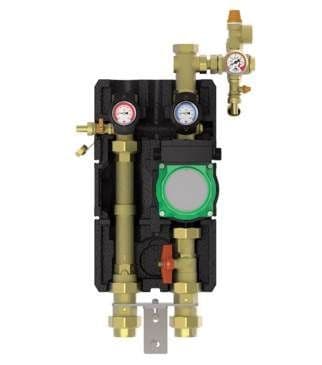

PAW SolarBloc mega DN32 twin line

Product Description

Range of application:
 Low-flow (= 0.25 l/minute per m² of collector surface), up to 175 m² of collector surface
 High-flow (= 0.5 l/minute per m² of collector surface), up to 115 m² of collector surface
Please note: In order to guarantee a trouble-free function, it is essential to carry out a hydraulic dimensioning/check of the solar installation.

All connections 1¼" internal thread
All fluid-carrying parts are made of brass
Large ball valve handles, easy handling, visible closing position
Pump can be isolated so that it can be replaced without draining
Fully assembled with flat gaskets
Check valves in the flow and return line, mounted in the cases of the mounting plate, can be opened, 2 x 200 mm wc, especially for solar systems, prevents gravity circulation
with pre-mounted steel wall bracket
Design insulation with optimized function made of durable elastic EPP; 100 % insulation of fittings, ventilation opening to cool the pumps
Solar safety group, solar pressure relief valve 6 bars, pressure gauge resistant to high temperatures 0-6 bars with valve, flat sealing connection 1" for an expansion tank
All-metal thermometers, can be pulled off, with immersion sleeve integrated in the ball valve
with pre-mounted solar circulation pump by Grundfos or Wilo, without cable
Fill and drain unit integrated, two fill and drain valves (at the flow ball valve and at the safety group) permit to fill and flush the entire installation.

Operating data
Max. pressure: 6 bars
Max. operating temperature: 120 °C
Equipment
Check valves: 2 × 200 mm wc
Pressure gauge: 0-6 bar, temperature-resistant
Dimensions
Connections: 1¼" internal thread
Installation length: 603 mm
Width: 366 mm
Height: 671 mm
Centre distance: 125 mm
Nominal diameter: DN 32 (1¼")
Materials
Valves and fittings: Brass
Gaskets: AFM 34 / EPDM
Insulation: EPP shells
Check valves: Brass




   Manual

Specifications

MPN
791010GH14
Product Code
22432114
Range of application:
 Low-flow (= 0.25 l/minute per m² of collector surface), up to 175 m² of collector surface
 High-flow (= 0.5 l/minute per m² of collector surface), up to 115 m² of collector surface
Please note: In order to guarantee a trouble-free function, it is essential to carry out a hydraulic dimensioning/check of the solar installation.

All connections 1¼" internal thread
All fluid-carrying parts are made of brass
Large ball valve handles, easy handling, visible closing position
Pump can be isolated so that it can be replaced without draining
Fully assembled with flat gaskets
Check valves in the flow and return line, mounted in the cases of the mounting plate, can be opened, 2 x 200 mm wc, especially for solar systems, prevents gravity circulation
with pre-mounted steel wall bracket
Design insulation with optimized function made of durable elastic EPP; 100 % insulation of fittings, ventilation opening to cool the pumps
Solar safety group, solar pressure relief valve 6 bars, pressure gauge resistant to high temperatures 0-6 bars with valve, flat sealing connection 1" for an expansion tank
All-metal thermometers, can be pulled off, with immersion sleeve integrated in the ball valve
with pre-mounted solar circulation pump by Grundfos or Wilo, without cable
Fill and drain unit integrated, two fill and drain valves (at the flow ball valve and at the safety group) permit to fill and flush the entire installation.

Operating data
Max. pressure: 6 bars
Max. operating temperature: 120 °C
Equipment
Check valves: 2 × 200 mm wc
Pressure gauge: 0-6 bar, temperature-resistant
Dimensions
Connections: 1¼" internal thread
Installation length: 603 mm
Width: 366 mm
Height: 671 mm
Centre distance: 125 mm
Nominal diameter: DN 32 (1¼")
Materials
Valves and fittings: Brass
Gaskets: AFM 34 / EPDM
Insulation: EPP shells
Check valves: Brass




   Manual
MPN
791010GH14
Product Code
22432114
