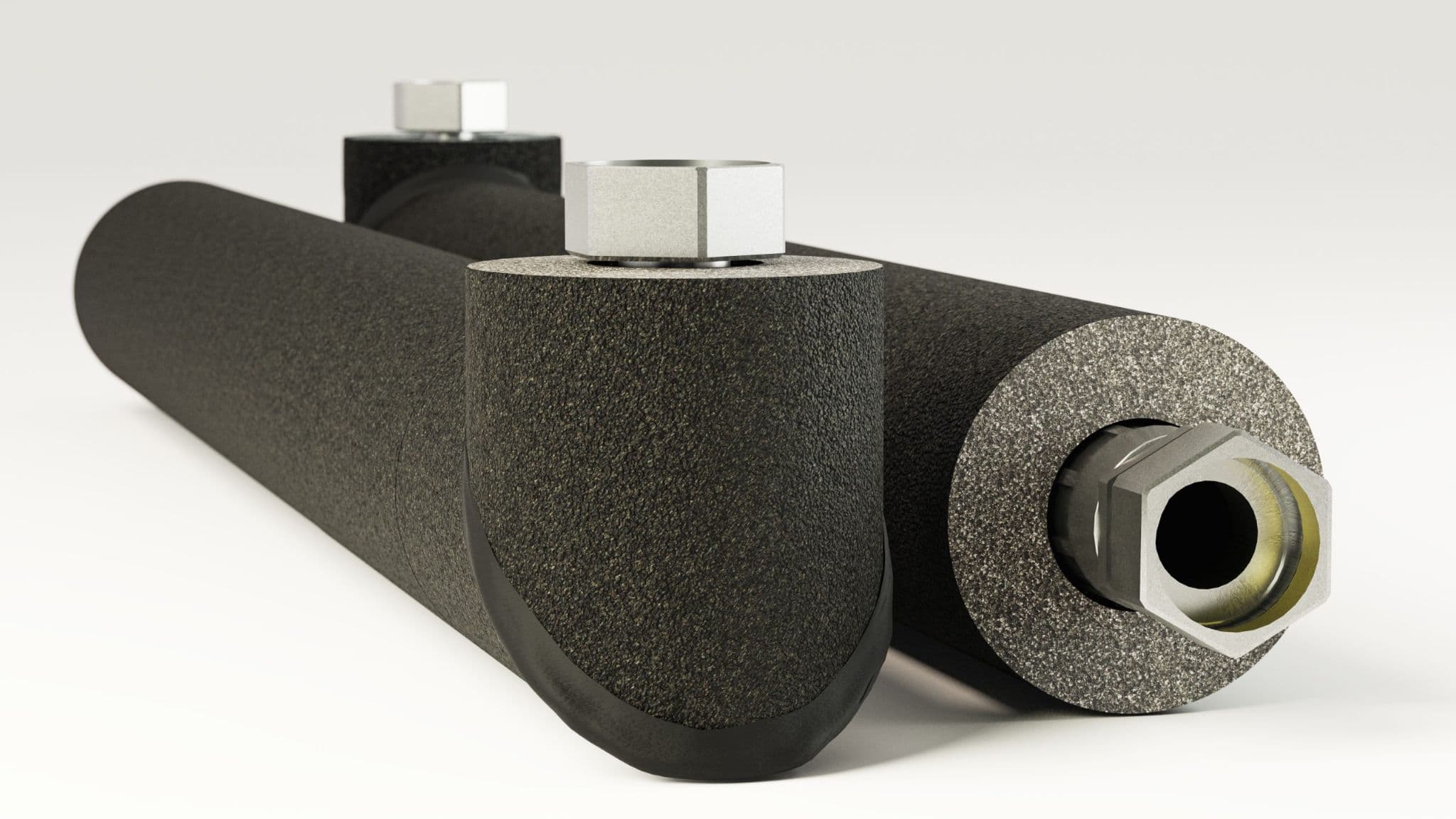

In systems where every watt counts, Inta’s Pre insulated hoses have been designed for external use to prevent heat losses and to help maintain the COP and SCOP of the system, preventing losses of energy, contributing to an efficient system and preventing higher costs to run than expected.

The water resistant finish prevents the insulation from absorbing water and moisture that could result in an unintended outcome of the insulation becoming a conductor for heat loss.

It’s essential that all joints are bonded and sealed correctly to prevent any capillary traction occurring. The surface finish must be re-treated, the joints and seals inspected and resealed if necessary using Primary Pro Bond / Seal during an annual inspection to maintain the product performance.

Hose

• Max inlet pressure (static): 10 Bar
• Max inlet temperature: 90°C
• Medium: water, water+glycol up to 50%

Insulation

• Wall thickness: 19mm +0 / -3mm
• Material: treated closed cell polyethylene
• Temperature range: -45°C to 105°C
• Thermal conductivity: λ = 0.034 W/mk at 0°C
• Water vapour diffusion resistance: μ ≥ 39,300
