FlowSol® B HE pump station - DeltaSol® CS/4

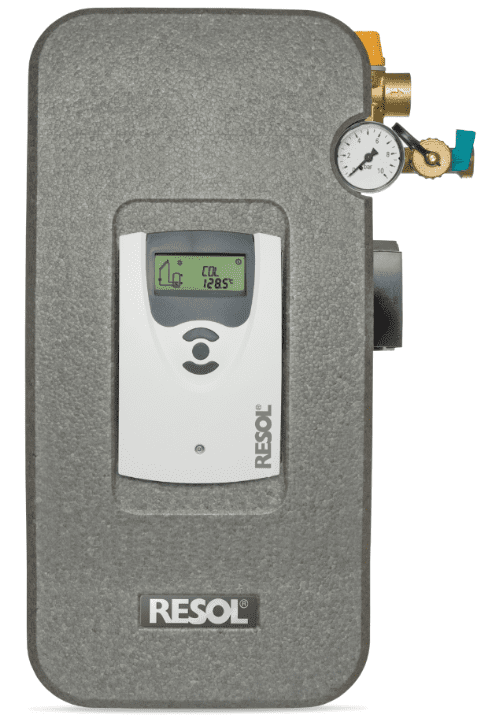

Twin-line pump station, incl. DeltaSol® CS/4 controller, high-efficiency pump and 3 Pt1000 sensors (1 x FKP6, 2 x FRP6)

Pre-assembled twin-line pump station

Integrated Deltasol CS/4 controller

Fully insulated casing

Innovative hinged controller panel for quick and easy access to the hydraulic components

Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge

Fill and drain valves

Wall mounting bracket with mounting material

Air separator with manual air vent for the solar thermal system

Circulation pump: Wilo Yonos Para 15/7.0 PWM2

Safety valve: 6 bar

Pressure gauge: 0 ... 10 bar

Flowmeter: 1 ... 13 l/min

Non-return valves: opening pressure 20 mbar, openable

Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing

Outlet safety valve: 3/4" IT

Connections to the solar pipes: 3/4" IT

Maximum temperature flow/return: 120 °C/95 °C

Maximum pressure: 6 bar

Medium: water with max. 50 % glycol

Dimensions:

approx. 481 × 320 × 190 mm (with insulation)

distance centres: 100 mm

distance centre/wall: 67 mm

Material: fittings: brass

sealings: EPDM/AFM 34

insulation: EPP foam

Flow rate: 1 ... 10 l/min

Non-return valve: 200 mm head, openable


Resol Flowsol B HE Manual     Resol FlowSol B HE Datasheet         DeltaSol CS4 Manual
