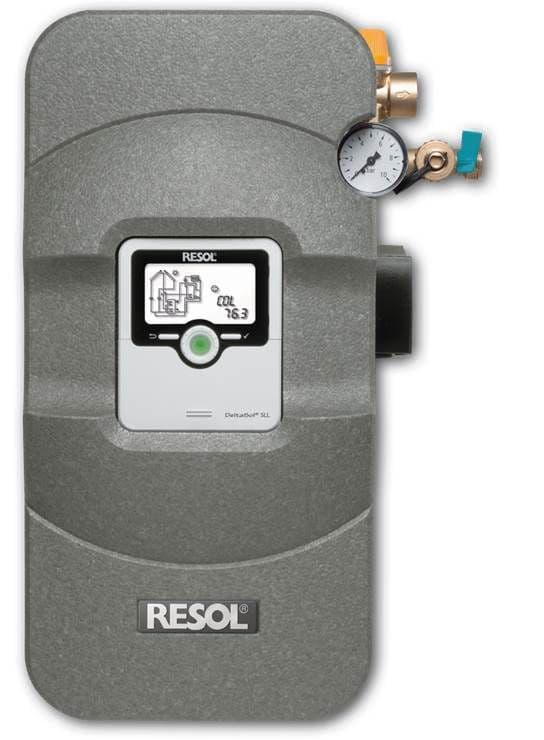

Resol Flowsol B HE twin line Pumpstation & DeltaSol SLL

Product Description

FlowSol® B HE pump station - DeltaSol® SLL
Twin-line pump station, incl. DeltaSol® SLL controller, high-efficiency pump and 3 Pt1000 sensors     (1 x FKP6, 2 x FRP6)

  • Pre-assembled twin-line pump station
  • Integrated Deltasol SLL controller
  • Fully insulated casing
  • Innovative hinged controller panel for quick and easy access to the hydraulic components
  • Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
  • Fill and drain valves
  • Wall mounting bracket with mounting material
  • Air separator with manual air vent for the solar thermal system
Circulation pump: Wilo Yonos Para 15/7.0 PWM2
Safety valve: 6 bar
Pressure gauge: 0 ... 10 bar
Flowmeter: 1 ... 13 l/min
Non-return valves: opening pressure 20 mbar, openable
Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing
Outlet safety valve: 3/4" IT
Connections to the solar pipes: 3/4" IT
Maximum temperature flow/return: 120 °C/95 °C
Maximum pressure: 6 bar
Medium: water with max. 50 % glycol
Dimensions:
approx. 481 × 320 × 190 mm (with insulation)
distance centres: 100 mm
distance centre/wall: 67 mm
Material: fittings: brass
sealings: EPDM/AFM 34
insulation: EPP foam
Flow rate: 1 ... 10 l/min
Non-return valve: 200 mm head, openable


        Flyer               Pumpstation Manual      Controller Manual

Specifications

MPN
29002923
Brand
RESOL
Product Code
21133098
FlowSol® B HE pump station - DeltaSol® SLL
Twin-line pump station, incl. DeltaSol® SLL controller, high-efficiency pump and 3 Pt1000 sensors     (1 x FKP6, 2 x FRP6)

  • Pre-assembled twin-line pump station
  • Integrated Deltasol SLL controller
  • Fully insulated casing
  • Innovative hinged controller panel for quick and easy access to the hydraulic components
  • Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge
  • Fill and drain valves
  • Wall mounting bracket with mounting material
  • Air separator with manual air vent for the solar thermal system
Circulation pump: Wilo Yonos Para 15/7.0 PWM2
Safety valve: 6 bar
Pressure gauge: 0 ... 10 bar
Flowmeter: 1 ... 13 l/min
Non-return valves: opening pressure 20 mbar, openable
Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing
Outlet safety valve: 3/4" IT
Connections to the solar pipes: 3/4" IT
Maximum temperature flow/return: 120 °C/95 °C
Maximum pressure: 6 bar
Medium: water with max. 50 % glycol
Dimensions:
approx. 481 × 320 × 190 mm (with insulation)
distance centres: 100 mm
distance centre/wall: 67 mm
Material: fittings: brass
sealings: EPDM/AFM 34
insulation: EPP foam
Flow rate: 1 ... 10 l/min
Non-return valve: 200 mm head, openable


        Flyer               Pumpstation Manual      Controller Manual
MPN
29002923
Brand
RESOL
Product Code
21133098
