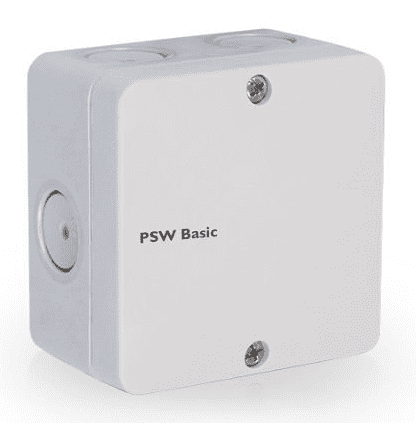

Resol PSW Basic

Product Description

The PSW Basic is small, easy to install and simple to connect. It covers a large part of the most common signal combinations it converts the signal of a speed-controlling semiconductor relay into either a PWM or a 0-10 V signal, both of those inverted if necessary.

For use with solar and heating pumps
PWM or 0-10 V output signal
Inversion of the output signal possible
Robust and dripping water protected housing

Technical Data
Inputs: bursts, phase cutting
Outputs: PWM / 0-10 V
PWM frequency: 625 Hz +-15 %
PWM voltage: 11 V
Power supply: 220 ... 240 V~ (50 ... 60 Hz)
Supply connection: type Y attachment
Power consumption: max. 1.5 VA
Housing: plastic
Protection type: IP 65 / EN 60529
Ambient temperature: 0 ... 50 °C
Dimensions: 80 x 80 x 53 mm



Specifications

MPN
180 010 53
Brand
Resol
Product Code
21139010
The PSW Basic is small, easy to install and simple to connect. It covers a large part of the most common signal combinations it converts the signal of a speed-controlling semiconductor relay into either a PWM or a 0-10 V signal, both of those inverted if necessary.

For use with solar and heating pumps
PWM or 0-10 V output signal
Inversion of the output signal possible
Robust and dripping water protected housing

Technical Data
Inputs: bursts, phase cutting
Outputs: PWM / 0-10 V
PWM frequency: 625 Hz +-15 %
PWM voltage: 11 V
Power supply: 220 ... 240 V~ (50 ... 60 Hz)
Supply connection: type Y attachment
Power consumption: max. 1.5 VA
Housing: plastic
Protection type: IP 65 / EN 60529
Ambient temperature: 0 ... 50 °C
Dimensions: 80 x 80 x 53 mm


MPN
180 010 53
Brand
Resol
Product Code
21139010

Resol PSW Basic

Product Code 21139010
