MAX LOAD: The maximum load for the Heat Pump Mover is 250Kg while standing.

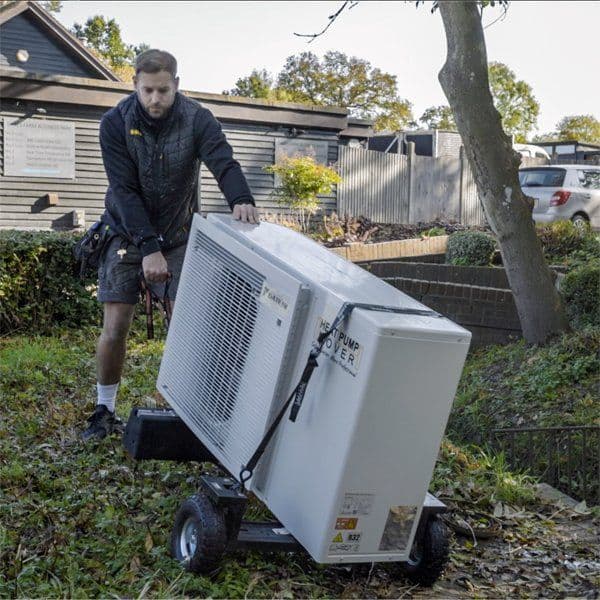

MAX LOAD MOVING: The maximum load for the Heat Pump Mover is 200Kg whilst being moved across typical building site.

MAX DISTANCE: Max distance for a single movement across a typical building site is 50m in a single movement.

MAX TILT: The maximum tilt angle the Heat Pump Mover can work is 10 DEG for an obstacle while moving across a typical building site. If the site is particularly rough, you must stop after each major obstacle to prevent a side swing momentum from building up.

MAX PULL: Whilst pulling the Mover and Heat Pump across a typical building site the maximum pull load on the handle provided is 50Kg pull to prevent the Heat Pump from being damaged.

MAX TIGHTEN: Straps should be lightly tightened to prevent the Heat Pump from moving on the Mover. The straps must not be tightened over 50Kg to prevent the Heat Pump from being damaged.

MAX SPEED: For your safety, the Mover is designed for walking speed you must not exceed 4 km/h.

TYRE PRESSURE: The optimum type pressure for Heat Pump stability is 30 psi for pumps weighing over 100 Kg.

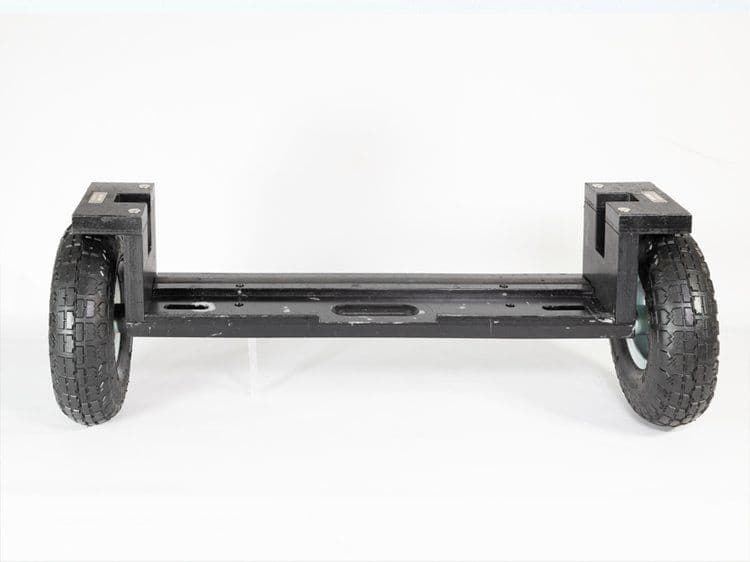

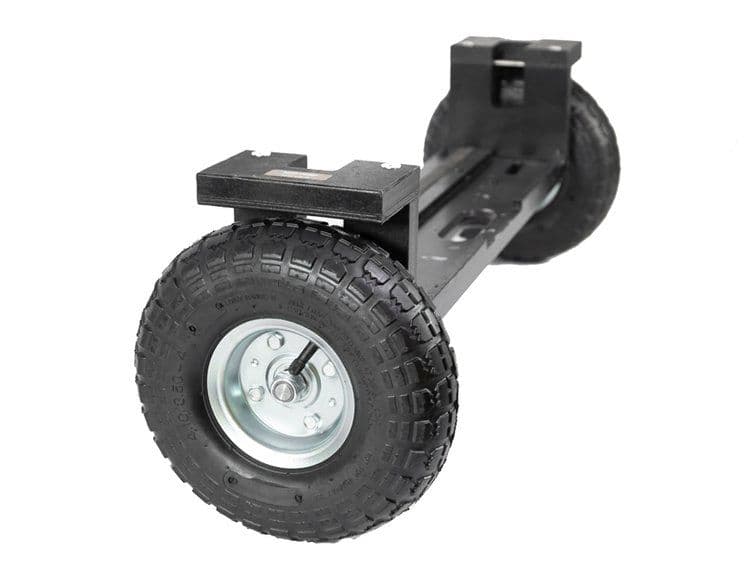

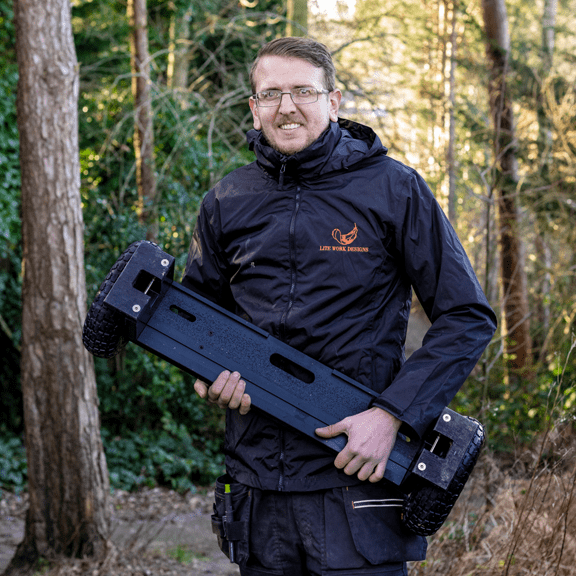

1x Assembled Heat Pump Mover

1x Pump Securing Strap

1x Pull Strap and Handle

2x Allen Keys (for maintenance purposes)

1x Accessories Pouch

3 Year Guarantee

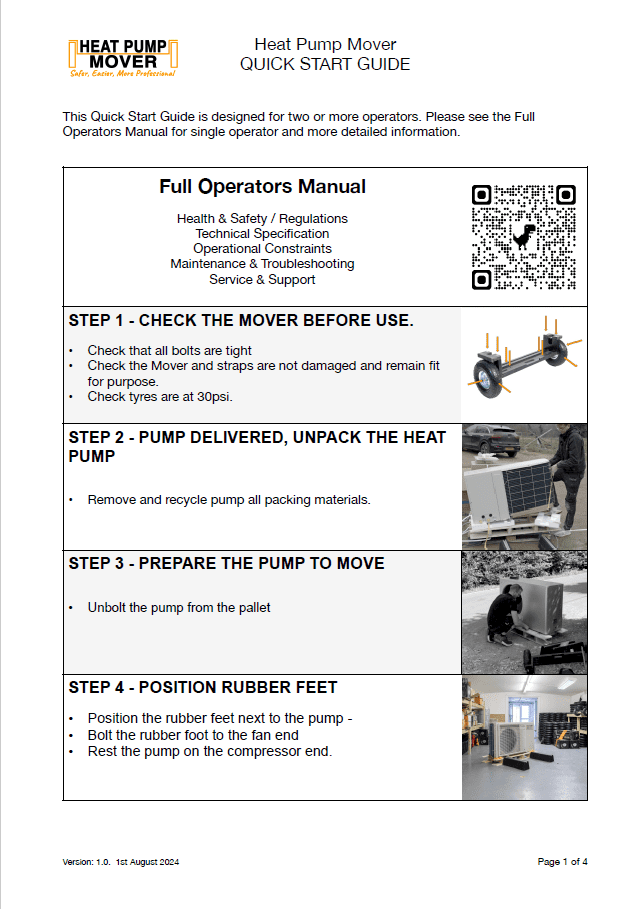

Instruction Pamphlet
