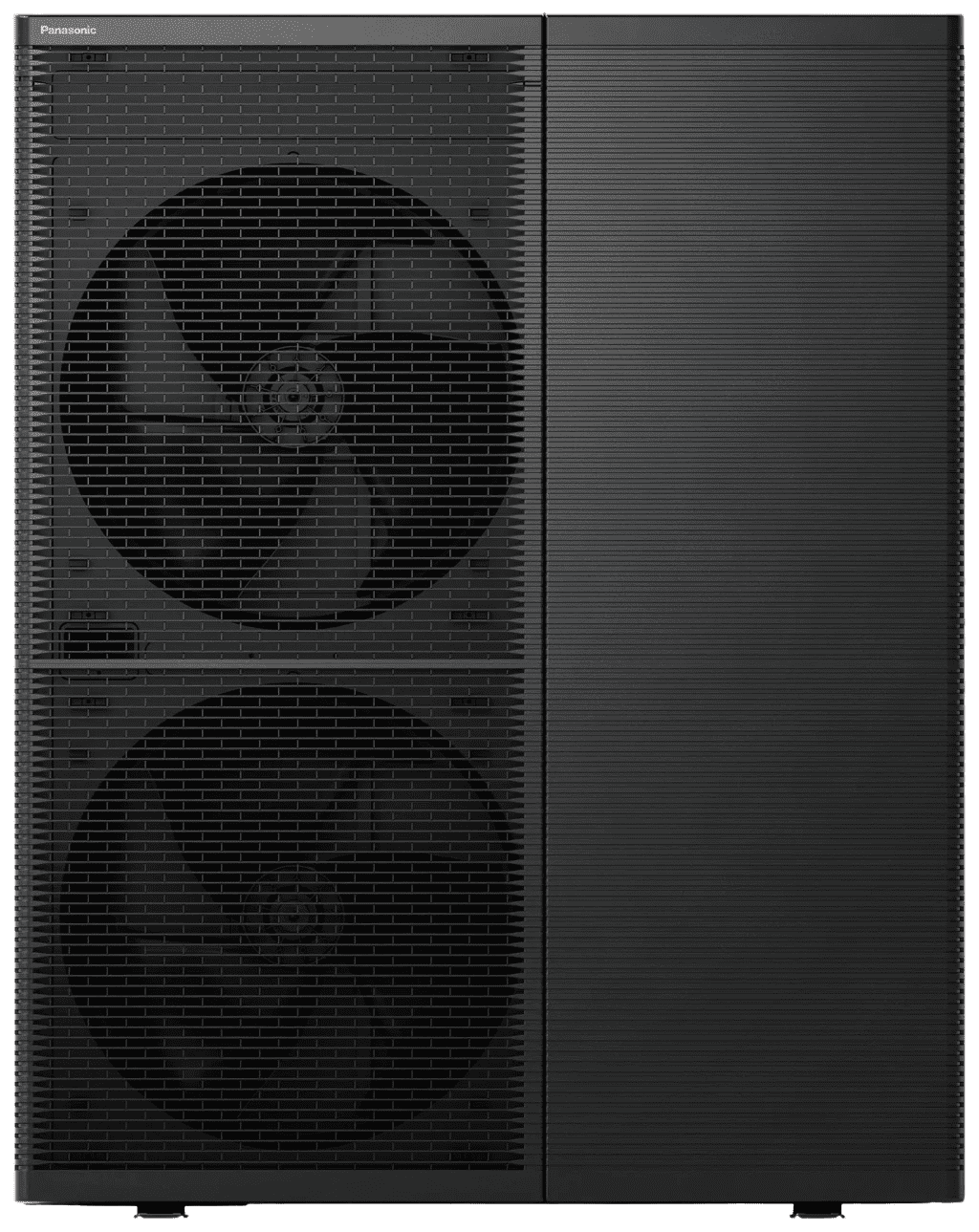

Aquarea M Series, the latest generation of Aquarea air to water heat pumps with R290

Aquarea T‑CAP M Series delivers a revolution in the design, performance, connectivity, and sustainability

The solution is suitable for new buildings and retrofits, as it offers a sustainable alternative to traditional fossil fuel heating systems and it can be easily integrated with existing water system such as fan coils, floor heating or domestic hot water tanks.

Utilising environmentally friendly R290 refrigerant, this system ensures sustainability and high efficiency, reaching water temperatures up to 75°C even in outdoor conditions as low as -15°C, and maintaining heating capacity down to -20°C without the need for electric backup.

Key Features:

• Up to 75°C water outlet down to -15°C outdoor.
• Quiet operation: Only 29dB(A) sound pressure at 5 m*.
• Reliable outdoor units with Panasonic compressor, operating down to -28°C outdoor.
• T‑CAP technology: Keeping heating capacity down to -20°C.
• Panasonic Comfort Cloud App and Aquarea Service Cloud included.

* Sound pressure calculation for WH-WXG12ME5, free standing, A +7°C, W 35°C in Quite mode 3.
