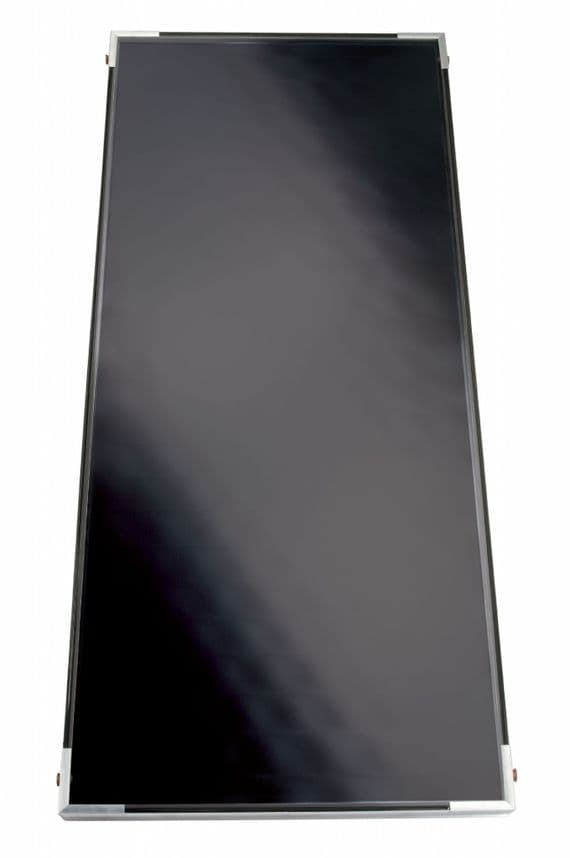

100-FM Panel on Roof Kit Slate Vertical

Flat plate kit based on Viessmann 100-FM solar thermal collector. The kit is totally complete and is designed to mount on a slate roof.

Kit includes:

• Vitosol 100-FM SV1F portrait panel
• Viessmann Connection Set
• Viessmann Connection Pipes (pair) to connect 2 or more panels
• Viessmann Collector Sensor pocket
• Viessmann roof fixing kit
• Spare parts set
• Resol high efficiency twin line pump station with integrated SLL controller OR PAW high efficiency twin line pump station & separate Resol CS4 controller (need to specify)
• Expansion vessel 18L
• Expansion vessel mounting kit
• Discharge container
• Discharge hose
• Solar Fluid
• 2 in 2 insulated DN16 10m (15m or 25m available for additional cost)
• Flexipipe Brackets
• DN16 Backnut, circlip & washer
• DN16 Coupling set
• Self-Seal Double Nipple DN16 x ¾
• Clamping Screw ¾ x 22mm
• Smooth Tube Adaptor DN16 x 22mm
• High Temperature Insulation 19mm x 22mm
• SP10 Lightening protector
• Lead base flashing single silicone boot (pair)

Please note that the quantities of the above items may vary according to the number of panels in the kit
