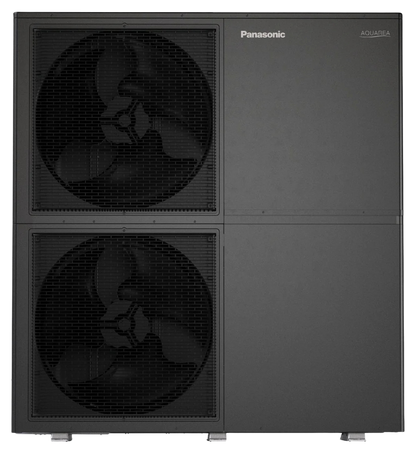

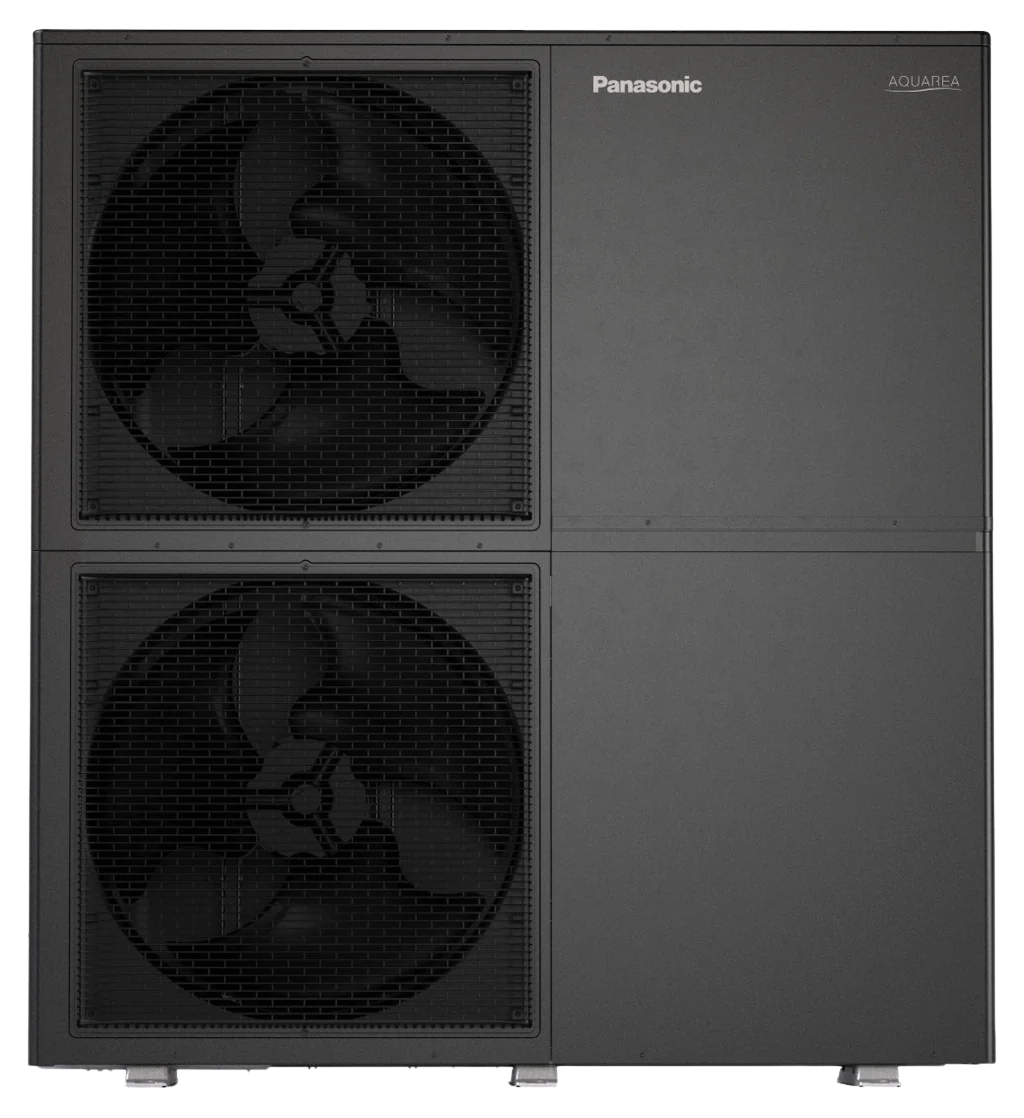

Aquarea T-Cap Hydraulic 3 Phase M Series

Aquarea M Series, the latest generation of Aquarea air to water heat pumps with R290

Aquarea T‑CAP M Series delivers a revolution in the design, performance, connectivity, and sustainability

The solution is suitable for both new buildings and retrofits, as it offers a sustainable alternative to traditional fossil fuel heating systems and it can be easily integrated with existing water system such as fan coils, floor heating or domestic hot water tanks.

• Up to 75°C water outlet down to -15°C outdoor ¹⁾
• Quiet operation: Only 29dB(A) sound pressure at 5m ²⁾
• Reliable outdoor units with Panasonic compressor, operating down to -28°C outdoor ³⁾
• T-CAP technology: Keeping heating capacity down to -20°C
• Panasonic Comfort Cloud App and Aquarea Service Cloud included

1) Down to 15ºC outdoor for 20, 25 and 30kW models
2) Sound pressure calculation for WH-WXG12ME5, free standing, A +7°C, W 35°C in Quite mode 3
3) Down to -25ºC outdoor for 20, 25 and 30kW models

* This Unit must be purchased along side M-Series Control Kit or Remote Control*
