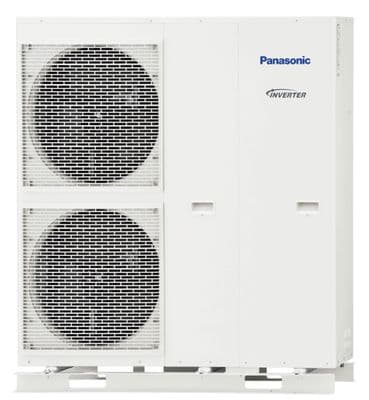

Panasonic Aquarea T-Cap Mono - J Series R32 Air Source Heat Pump

Panasonic Aquarea T-Cap R32 Heat Pump warms homes effectively and efficiently, even with extreme outdoor temperatures, it can also cool space in summer and bring hot water all year round.

Panasonic Aquarea T-CAP is the range for retrofit and new builds, T-Cap means it maintains Total Capacity even at extremely cold ambient temperatures.

The Mono‑Bloc system: It is only an outdoor unit. Being a mono bloc the unit doesn’t require refrigerant connections, as the unit is directly connected to the heating and/or hot water circuits.

Is available in single phase and 3 phase

• Energy efficiency: A+++ in heating at 35°C / “A” water pump with variable speed / Built-in flow meter.
• Flexibility: Built-in magnetic water filter.
• Comfort: Constant capacity and operation range down to -20°C / 65°C water outlet temperature.
• Control: Additional functions with optional PCB (2 zone control, bivalent control, Smart Grid contact and more).
• Connectivity: Optional Aquarea Smart and Service Cloud and integration into BMS projects.
