• RESOL Changeover valve

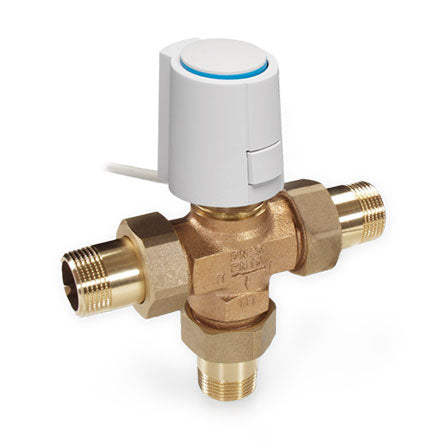

RESOL Changeover Valve 3 Port VA300 DN25 Normally Open

Contact us for availability

Product Code: 31030125

MPN: 270 008 40

£213.20 GBP
£213.20 GBP
Sold out

Description

The VA300 is a 3-port-valve with an electrothermal actuator. An actuating time of approximately 3 minutes enables the flow rate to be regulated without water hammers.

VA300 Changeover valve
  • Maximum pressure: 10 bar
  • Housing: corrosion resistant red brass
  • Sealings: EPDM
  • Connections: 1"
  • Internal parts: brass and stainless steel
  • Temperature range: temperature resistant up to +120°C, for a short term up to +140°C
VA20/VA300 Actuator
  • Power supply: 230V~, 50 – 60 Hz
  • Power consumption: 1 W
  • Max. switching voltage: max. 550 mA
  • Ingress protection: IP54
  • Maximum operation temperature: 0 – 60°C
  • Spring force: 100N
  • Stroke: 4 mm
  • Actuation time: ca. 3.5 min
  • Protection class: II
  • Electrical connection: 2 x 0.75 mm²; 100 cm
