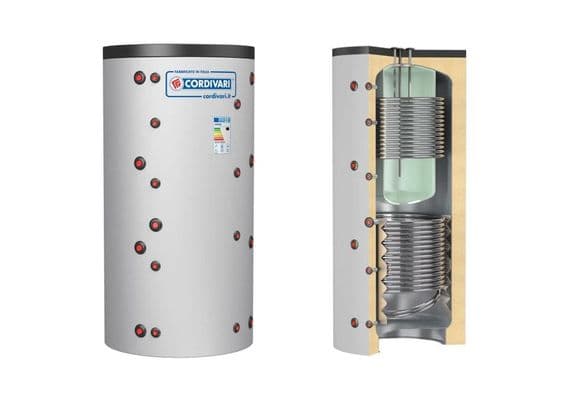

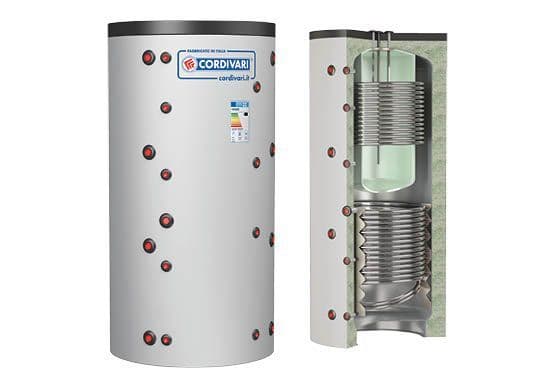

Cordivari Combi 3 (Polywarm)

Cordivari Combi 3 Multi-heat energy buffer with Polywarm coated tank in tank calorifier for DHW and 2 fixed heat exchangers

APPLICATION:
Heating hot water storage and D.H.W. production.

MATERIAL:
Buffer tank: Mild steel painted on the outside. Buffer intented for closed circuit installation, so no anti-corrosion treatment is provided.
D.H.W. storage: Mild steel Polywarm® coated (Attestation ACS – SSICA – EN 16421 – WRAS).

HEAT EXCHANGERS:
2 mild steel fixed heat exchangers.

TECHNICAL DESCRIPTION:
Multi-Heat Energy tanks Combi 3 are used in units with a typically discontinuous energy source for double use: heating systems and domestic hot water systems.

INSULATION:
– HARD: High thermal insulation with ecological polyurethane hard foam. Models 800-1000 available with dismountable hard foam insulation.
– SOFT (Dismountable): NOFIRE® polyester fleece 100% made of recyclable material, with high thermal insulation. Fire resistance class B-s2d0 according to EN 13501.
Grey PVC external lining, complete with top and flange cover.

CATHODE PROTECTION:
Chain magnesium anode.
