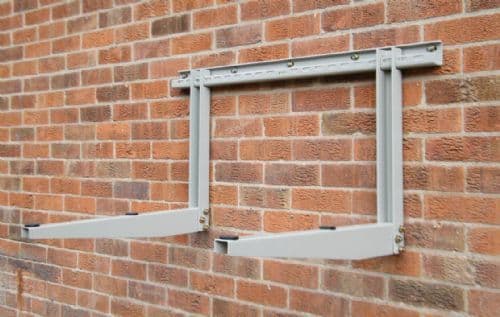

DiversiTech Condenser Mounting Bracket Type 2

These flat-packed, self-assembly brackets provide a professional finish to the installation of wall-mounted air source heat pumps. They have a crossbar allowing the uprights to be spaced exactly as required, and include wall spacers to help level the unit on uneven walls.

The package includes a crossbar with a spirit level, 2 x support arms, 2 x uprights, fixings, and installation instructions.

Features

• An integral spirit level makes the correct installation of the crossbar easier

• Uprights mount anywhere on the crossbar, which enables the arm span to be adjusted easily

• Adjustable wall spacers to level the arms

• Safe working load up to 250kg

• Suitable to match most brands of air source heat pumps

• Textured finish in (RAL 7032)

Sizing:

Size - Safe working load - Max Load - Crossbar - Upright - Support Arm - Weight
M - 90kg - 180kg - 900mm - 500mm - 500mm - 4.6kg
L - 140kg - 280kg - 1040mm - 550mm - 540mm - 6.6kg
XL - 250kg - 500kg - 1040mm - 550mm - 660mm - 16.2kg

We recommend the CBR2-XL for most external heat pump units. Just as a guide, the Panasonic Aquarea range has the following weights:-
5-9kw 112kg,
12-16kW 147kg
