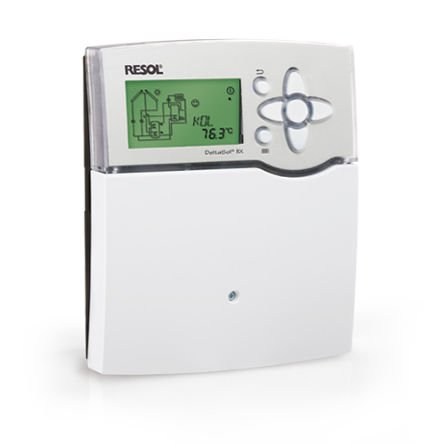

Resol DeltaSol BX Controller

The DeltaSol® BX is equipped with four relay outputs as well as two PWM outputs for the speed control of energy-saving high-efficiency pumps. Additionally, the controller is equipped with five Pt1000 sensor inputs, two analog Grundfos sensor inputs, an impulse input (V40 Flowmeter), as well as a supplemental L'-output for the connection of an actuator.
The integrated SD memory card slot enables easy datalogging to an SD memory card as well as a quick and effortless transfer of logged system data to a PC. The extra-large display gives a precise visualisation of the system status.
Pre-defined functions allow easier parametrisation of the system; functional additions such as a drainback option broaden the range of applications. Of course, the DeltaSol® BX is also equipped with a RESOL VBus®.

• Extra large display
• 4 relay outputs
• 7 sensor inputs
• Inputs for Grundfos Direct Sensors
• Speed control of high-efficiency pumps
• Datalogging onto supplied SD memory card
• Drainback option
• RESOL VBus®
• Energy-saving switch-mode power supply
• East/West, 2 Stores, afterheat etc

Supplied with 2 x FKP6, 3 x FRP6 and SD card.
