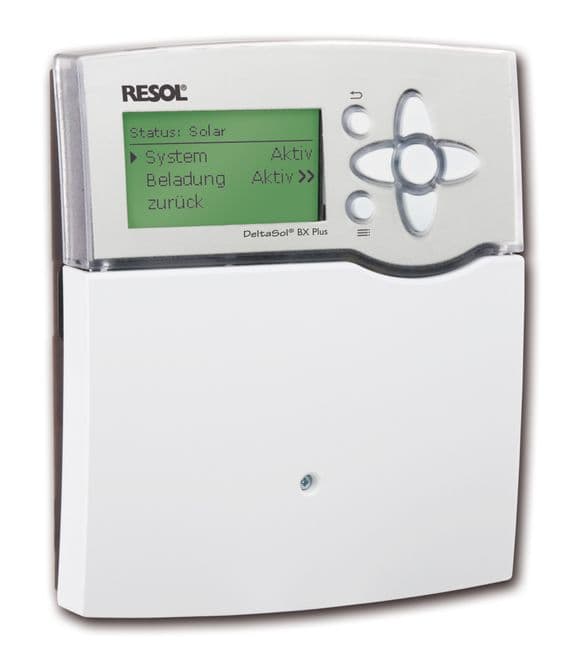

Resol DeltaSol BX Plus Controller

The DeltaSol® BX Plus is equipped with five relay outputs and up to nine sensor inputs, connections for digital Grundfos Direct Sensors, and PWM outputs for speed control of energy-saving high-efficiency pumps. With the integrated SD memory card slot, logging system data and updating the firmware is possible. Additional accessories, as well as up to two EM extension modules, extending the controller by six sensor inputs and five relay outputs each, can be connected via the RESOL VBus®..

• Data logging, storing and firmware updates via SD memory card
• Pre-programmed optional functions
• Up to 9 sensor inputs for Pt1000, Pt500 or KTY temperature sensors
• 2 inputs for digital Grundfos Direct Sensors
• 5 relay outputs
• Extra large graphic display
• 2 PWM outputs for speed control of high-efficiency pumps
• Drainback option
• Time-controlled thermostat function
• Thermal disinfection function
• RESOL VBus

Supplied with 2 x FKP6, 3 x FRP6 and SD card.
