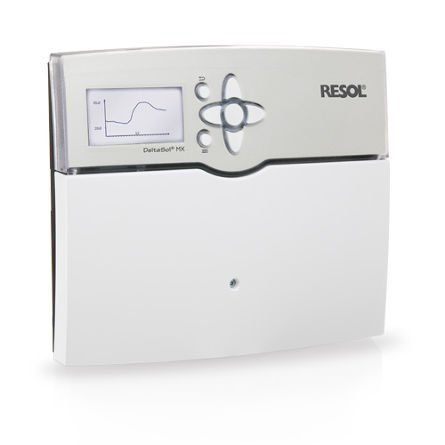

Resol DeltaSol MX Controller

The DeltaSol® MX is equipped with 14 relay outputs and four PWM outputs for the speed control of energy-saving high-efficiency pumps; all PWM outputs can be converted into 0-10 V signal outputs.

Additionally, the controller has one frequency input, three impulse inputs, as well as a range of different sensor inputs.

Up to five extension modules can be connected via the RESOL VBus®.

The integrated SD memory card slot enables an easy datalogging to an SD memory card as well as a quick and effortless transfer of logged system data to a PC.

The large full graphic display allows the direct display of balance and progression diagrams.

Pre-defined functions allow easier parameterisation of the system; functional additions such as a drainback option broaden the range of applications.

• Full graphic display
• 14 relay outputs
• 15 sensor inputs
• Inputs for Grundfos Direct SensorsTM
• Speed control of high-efficiency pumps
• Datalogging onto an SD memory card
• Drainback option
• RESOL VBus®
• Energy-saving switching-mode power supply

Supplied with 2 x FKP6, 4 x FRP6 and SD card.
