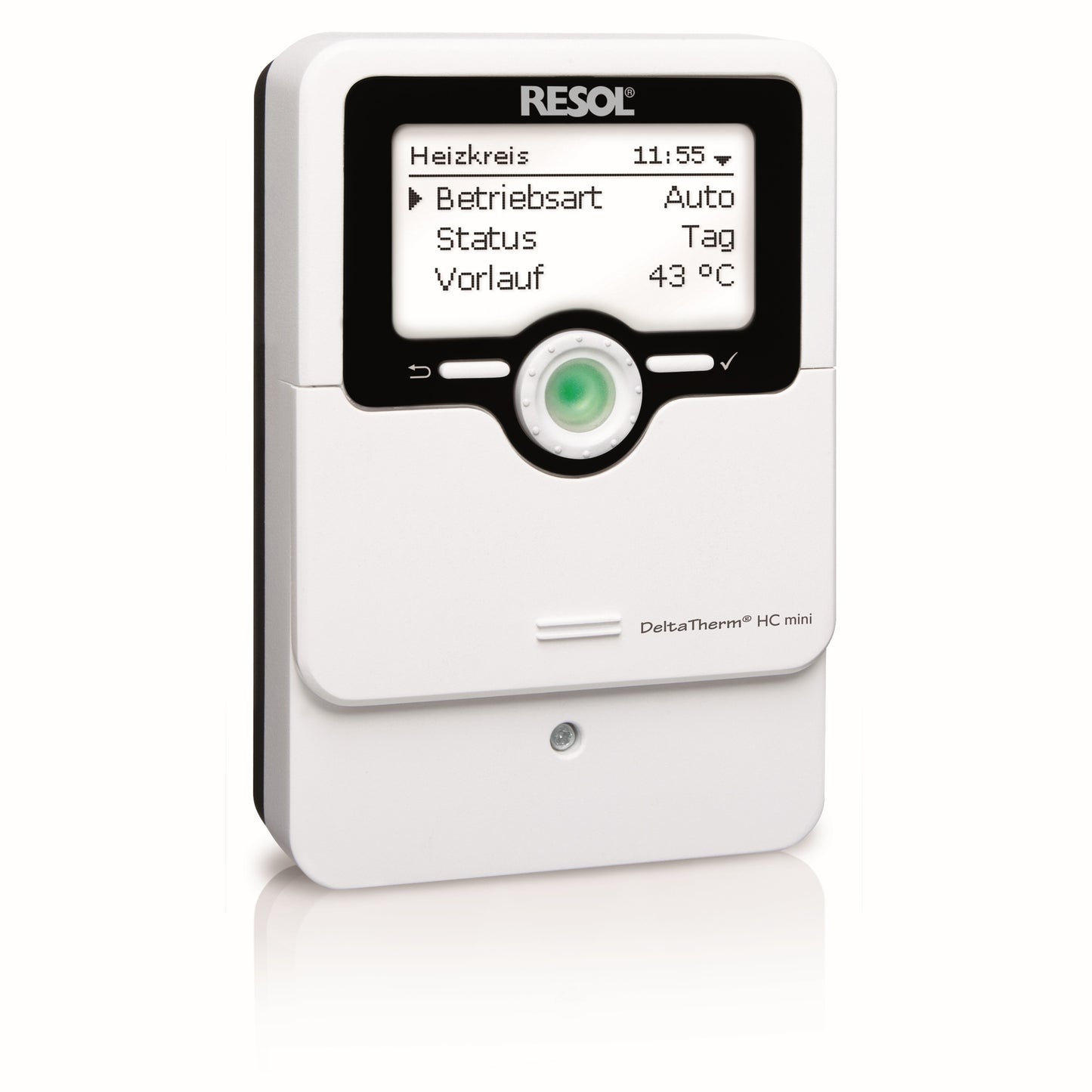

DeltaTherm HC Mini Heating Controller

The DeltaTherm^® HC mini offers a compact and user-friendly solution for simple heating systems. It can control a weather-compensated heating circuit and its backup heating demand. Additional DHW functions such as circulation or thermal disinfection, and the efficient implementation of further heating circuits are possible with EM Extension modules*. Additionally, there’s a choice of 5 different operating modes, a boiler protection option and a night correction.

In summer, the heating circuit takes over the demand-based cooling by means of a humidity sensor for dew point calculation*.

• 4 pre-configured basic systems for quick and easy configuration
• Cooling over the heating circuit with humidity sensor*
• Up to 5 extension modules can be connected via the VBus^®, up to 7 weather-compensated heating circuits*
• 6 operating modes, boiler protection, room thermostat and night correction
• Holiday mode, chimney sweeper function and screed drying function
• Modulating heating control with 0-10 V boiler control
• Weather-compensated control with room influence or demand-based room control with up to 5 room temperature sensors
• Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via MicroSD card
• Remote access with a room control unit or the VBus^®Touch HC App
• Heat pump demand (optional)

*from version 2
