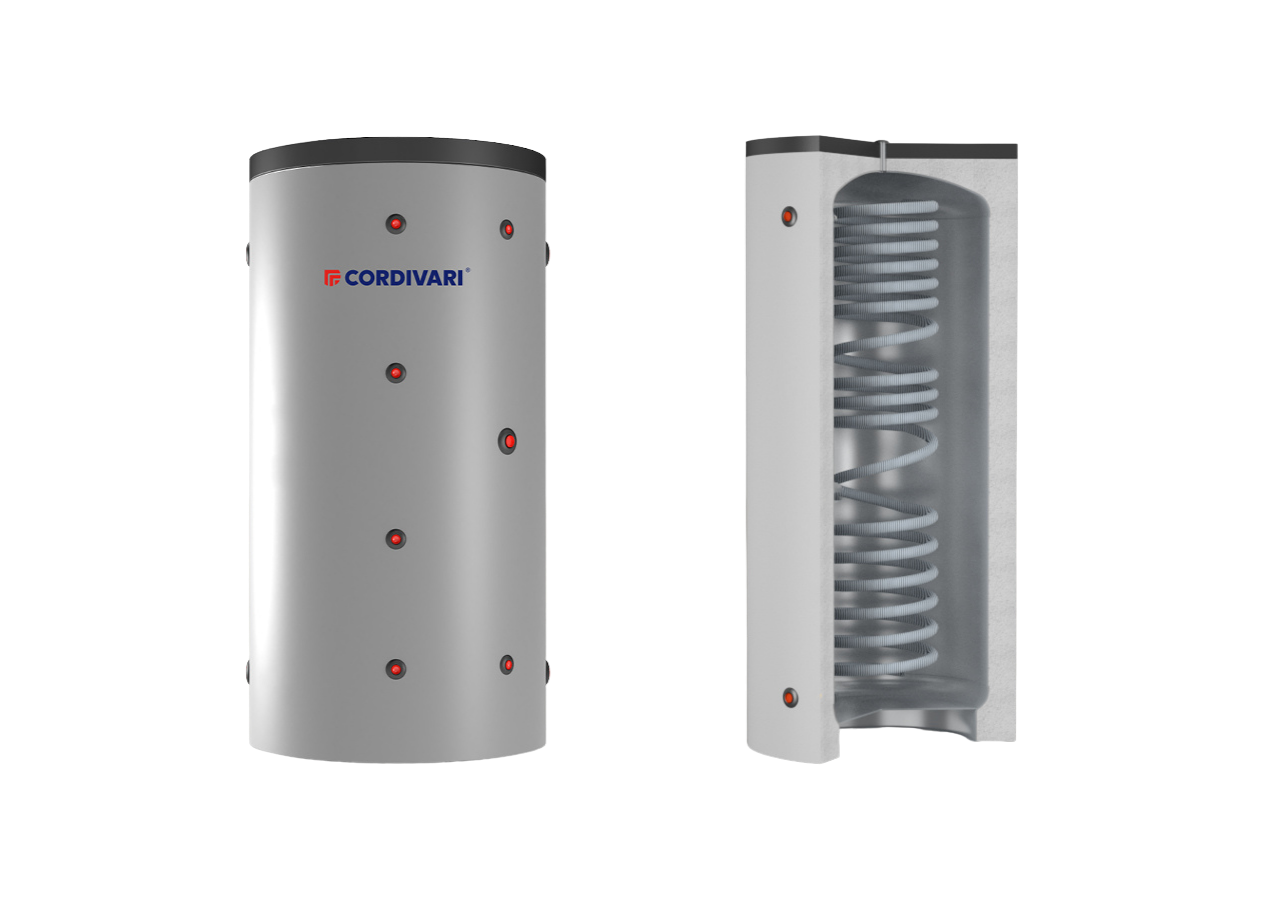

Eco Combi 1 PDC VB 300L No Coil Hard Insulation

Multi-heat energy buffer for heat pump with stainless steel 316L DHW corrugated coil.

APPLICATION:
Technical hot water storage and D.H.W. production.

MATERIAL:
Mild steel painted on the outside. Buffer intented for closed circuit installation, so no anti-corrosion treatment is provided.
Stainless steel 316L corrugated coil, suitable for D.H.W. according to D.M. n. 174 dated 06.04.04.

TECHNICAL DESCRIPTION:
Designed for systems powered by heat pump as heat source. ECO COMBI 1 PDC, at the typical temperatures of heat pumps, guarantees excellent DHW production thanks to the specially designed and dimensioned corrugated stainless steel 316L heat exchanger.

INSULATION:
– HARD: High thermal insulation with ecological polyurethane hard foam. Model 800 available with di Dismountable hard foam insulation.
– SOFT (Dismountable): NOFIRE® polyester fleece 100% made of recyclable material, with high thermal insulation. Fire resistance class B-s2d0 according to EN 13501.
Grey PVC external lining.
