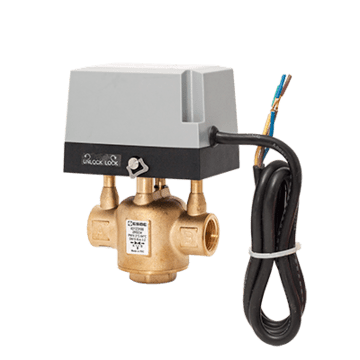

ESBE ZRS234 230VAC

Good Stock

Product Code: 49213234

MPN: 43123300

Choose Connection Size 1" Internal thread 1 1/4" Internal thread

Description

ZRS230

Closing pressure up to 150 kPa
Manual operation possible
Fast running time
Flow direction AB to B without power

Series ZRS230 is a range of 3-way diverting motorized zone valve with spring return actuator for use in heating and cooling system. The ZRS230 series is available in DN15-32, PN16 with internal thread connection. The actuator is controlled by 2-point signal with spring return function and is recommended for diverting function, available for 230V AC, 50/60Hz power supply. The flow direction is AB to B without power.

The product is intended to be used in closed circuits only.
