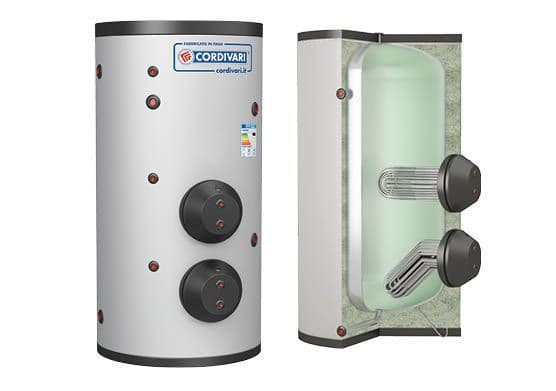

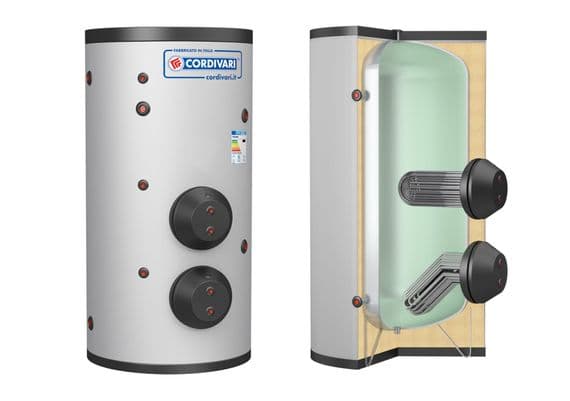

Cordivari Extra 2 WX

Cordivari Polywarm coated calorifiers with 2 extractable stainless steel heat exchangers

APPLICATION:
Production and storage of domestic hot water (DHW).

MATERIAL:
Mild steel Polywarm® coated (Attestation ACS – SSICA – EN 16421 – WRAS).

HEAT EXCHANGER:
N° 2 Stainless steel 316L heat exchangers (upper: straight – lower: Antilegionella® with tubes bent to the bottom).

INSULATION:
HARD: High thermal insulation with ecological polyurethane hard foam.
SOFT: NOFIRE® polyester fleece 100% made of recyclable material, with high thermal insulation. Fire resistance class B-s2d0 according to EN 13501.
Grey PVC external lining.

CATHODE PROTECTION:
Magnesium anode. Models > 1500 n° 2 magnesium anodes.

DRAIN:
External confluence through drain connection. Models > 1000 external confluence through drain pipe.

GASKET- FLANGE PLATE:
Silicone gaskets suitable for water intended for human consumption (tested according to 98/83/CE), max temperature up to 200°C. Mild steel exchanger head with anticorrosion treatment.
