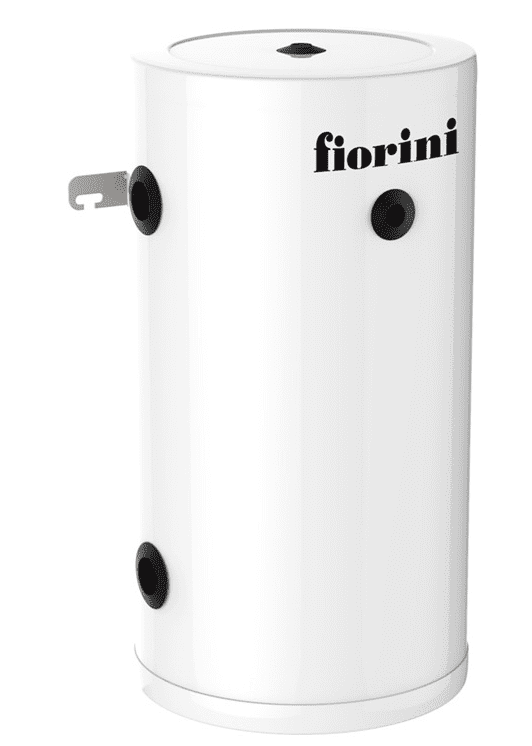

Fiorini Buffer Vessel 45L

The MINI-HC series includes heat sink tanks for "Hot & Cold" plants suitable for use with heat pumps, perform hydraulic circuit breaker functions (making the flows of the two circuits independent) and to minimise the heat pump starts. The MINI-HC. 45L buffer has two additional connections dedicated to a supplementary source and could be used for cascade or bivalent installations.

Material: carbon steel
External covering: Painted galvanised metal sheet
Insulation: High-density rigid polyurethane foam
Operating Limits
6 Bar maximum pressure
-10°C to 90°C
Connections: 7 No. 1 ¼” + 1 No. ½”
Dimensions: 370mm diameter x 730mm high.
