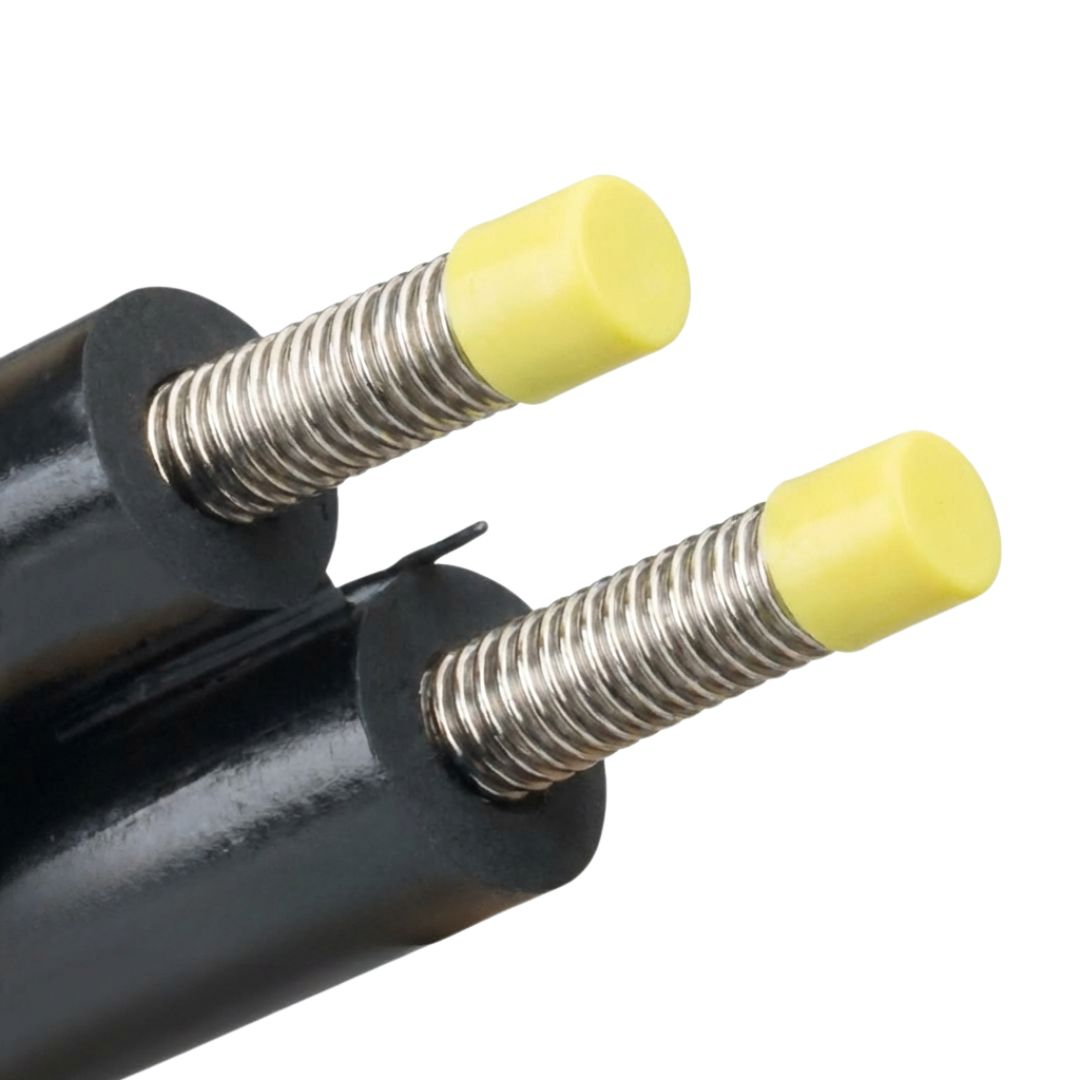

Flexipipe 2 in 2 Insulated DN16

Our pre-assembled pipe systems with their high-temperature and UV-resistant insulation material are an ideal choice for your solar thermal system. The insulated double tube is a flexible, quick installation system to connect solar collectors to the pump station and to the storage cylinder. The system is lightweight and space-saving, which results in easy handling, even in confined spaces. Flow and return pipes are marked clearly and can easily be separated. Thus, collectors with a large distance between connectors can be connected quickly and economically.

2in2 is the way to reduce installation time whilst ensuring a leak-free installation. Two closed-cell elastomeric foam extrusions of high-temperature resistant EPDM are reliably protected against mechanical damage by a tough protective sheath.

Technical data:

Corrugated stainless steel pipe :
1.4404 - AISI316L

Insulation thickness:
14 mm (2in2)

Available from stock:

Two-core silicone sensor cable

High-temperature resistant
EPDM up to+150°C continous load(+175°C intermittent)

Heat conductivity:
? (0°C) = 0,038 W/mK
? (40°C) = 0,042 W/mK
Fire classification
Class E (according to BS EN 13501-1)

Water vapour transmission:
µ ? 4500 (according to DIN EN ISO 12572)
