Flowsol B HE Pumpstation

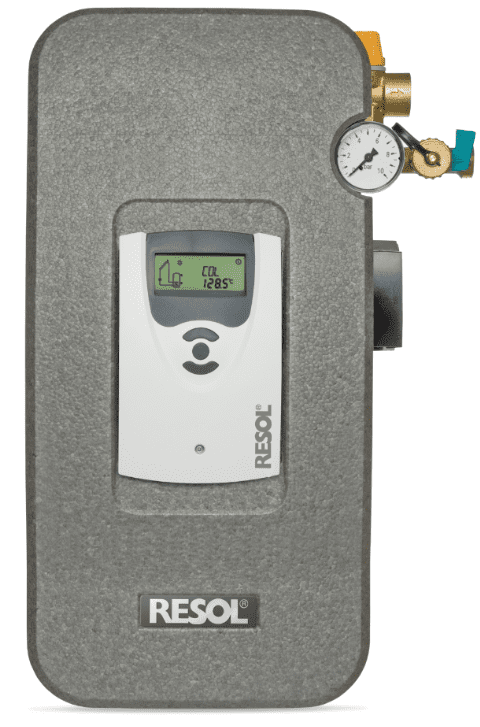

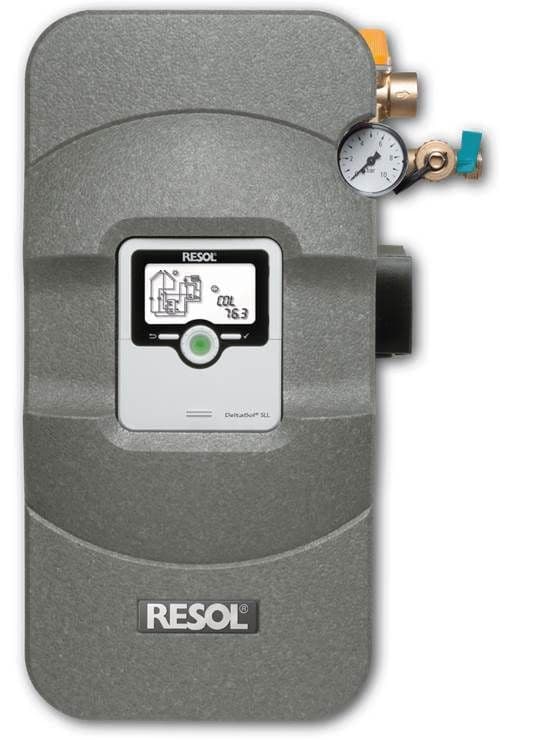

FlowSol® B HE pump station - DeltaSol® CS/4 / DeltaSol® SLL
Twin-line pump station, incl. controller, high-efficiency pump and 3 Pt1000 sensors (1 x FKP6, 2 x FRP6)

Pre-assembled twin-line pump station
Integrated Deltasol CS/4 controller / DeltaSol® SLL
Fully insulated casing
Innovative hinged controller panel for quick and easy access to the hydraulic components
Safety assembly with connection for the diaphragm-type expansion vessel, safety valve and pressure gauge.
Fill and drain valves
Wall mounting bracket with mounting material
Air separator with manual air vent for the solar thermal system
Circulation pump: Wilo Yonos Para 15/7.0 PWM2
Safety valve: 6 bar
Pressure gauge: 0 ... 10 bar
Flowmeter: 1 ... 13 l/min
Non-return valves: opening pressure 20 mbar, openable
Connection to diaphragm-type expansion vessel: 3/4" ET, flat sealing
Outlet safety valve: 3/4" IT
Connections to the solar pipes: 3/4" IT
Maximum temperature flow/return: 120 °C/95 °C
Maximum pressure: 6 bar
Medium: water with max. 50 % glycol

Dimensions:
approx. 481 × 320 × 190 mm (with insulation)
distance centres: 100 mm
distance centre/wall: 67 mm

Material: fittings: brass
sealings: EPDM/AFM 34
insulation: EPP foam
Flow rate: 1 ... 10 l/min
Non-return valve: 200 mm head, openable
