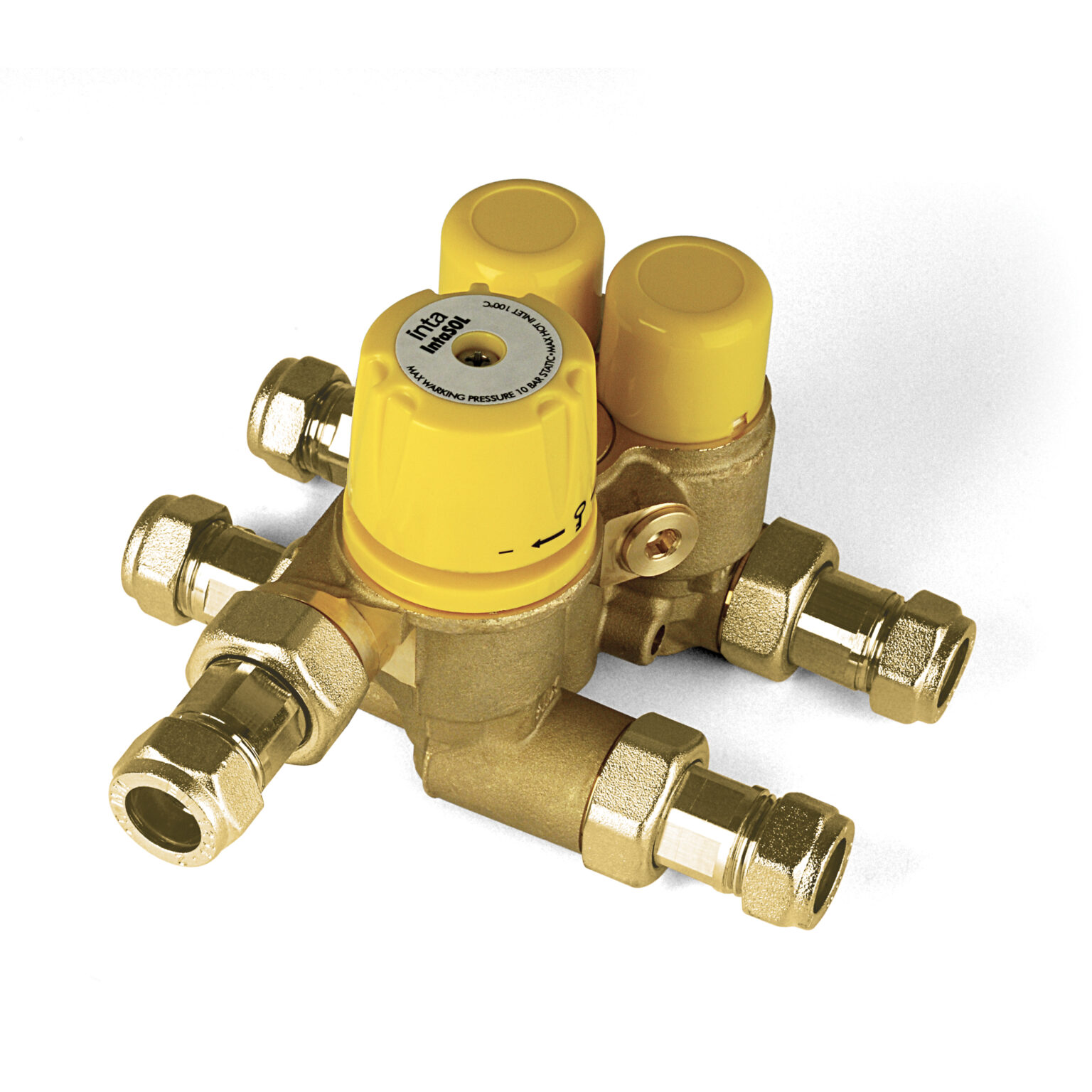

Intasol Combi Divert Valve

The intasol combi diverter valve enables solar heated unvented hot water cylinders to be linked with a combi boiler. In the event the hot water temperature in the cylinder dips below a usable temperature, the valve diverts this water to the combi boiler, treating it as a pre-heat. The valve then blends hot water produced by the combi boiler or the cylinder with cold water from the mains to deliver water at a safe, usable temperature for the end user.

Links a solar heated unvented cylinder to a combi boiler
Diverts to hot water from the combi boiler in the event of low cylinder temperatures
Maximum static pressure: 10 bar
Maximum dynamic pressure: 5 bar
Provides safe blended hot water to the end user
Temperature adjustment range: 35 - 55°C
Maximises the use of solar heated water in the cylinder
WRAS approved
Temperature stability: ±2°C
Maximum inlet temperature: 110ºC
Minimum flow rate for stable operation: 6L/min
