Mixing Valve AMV

Description

Mixing- and diverting valve.

Construction

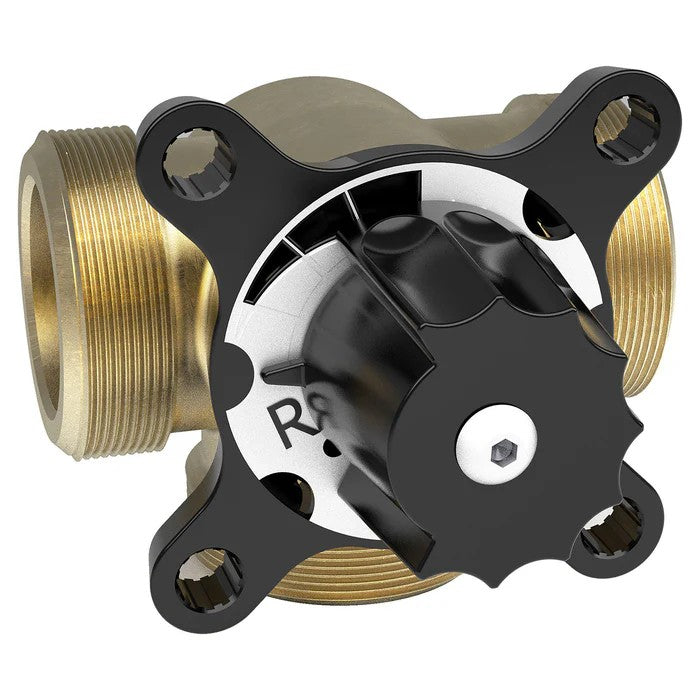

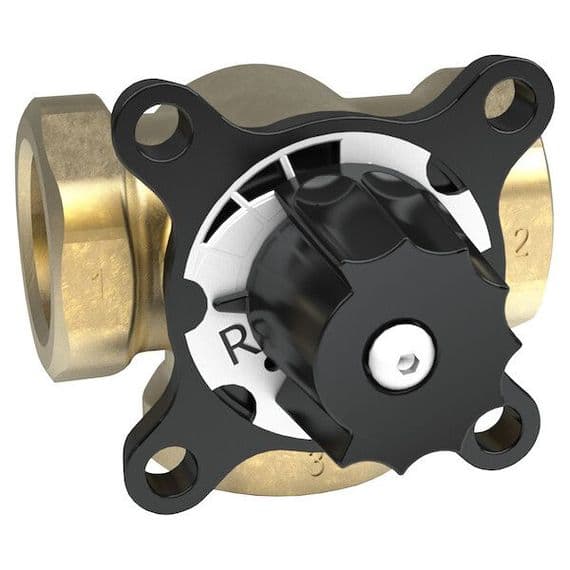

3-way mixing- and diverting valve in brass. Connection
female thread 1/2" - 1 1/4" alternatively male thread
3/4" - 1 1/2" alternatively compression fitting 22CU or 28CU.
O-rings in EPDM. The valve can be used in heating and
cooling systems and is prepared for motorisation with a
standard four-point attachment. Suitable actuators could for
example be Belimo, Ouman, Seltron, Evenes, Automix, Vexve
and ESBE. Turning direction can be changed without tools,
even when pressurized.

Technical data

• Body: Brass
• Closing element: Brass
• Cover: Fortron
• Handle: POM
• O-rings: EPDM
• Maximum working pressure: 10 bar
• Maximum closing pressure: 4 bar
• Maximum working temperature: +120ºC
• Minimum working temperature: 0ºC
• Torque: < 3 Nm
• Turning angle: 90-degrees
• Tightness rate: < 0,1 % of flow, 2 bar/ 90 °C
• Media: Water - glycol mix (eltylene, propylene) max 30%
• Media: Water - etanol mix max 30%
