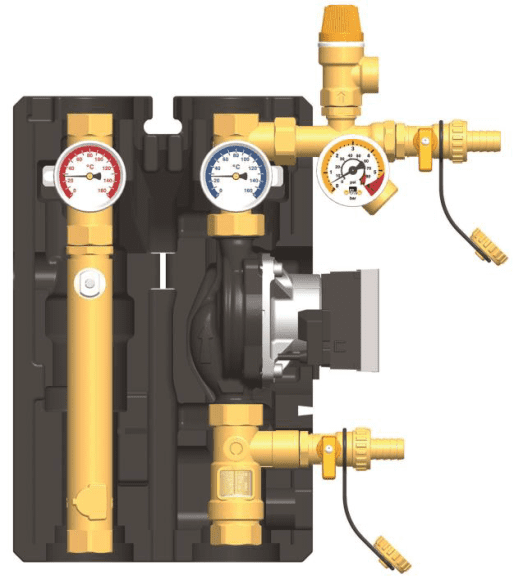

SolarBloc Midi Wilo Para ST 15/7 PWM2

Please note:
In order to guarantee a trouble-free function, it is essential to carry out a hydraulic dimensioning/check of the solar installation.

The SolarBloC midi Basic is a compact and completely premounted solar station. The solar station has an optimum energy consumption and is characterized by simple installation and compact design at best operation performance.

All fluid-carrying parts are made of brass.

All connections ¾" internal thread, flow and return to the collector at equal height - for simple assembly with double pipe.

Pre-mounted on steel wall bracket, can be easily mounted to the wall or - with PAW mounting equipment - directly to the storage tank.

Full port ball valves.

Check valve in the flow and return ball valve, can be opened by turning the handle to a 45°C position, 200 mm wc each circuit, especially for solar systems, prevents unwanted circulation.

Compact design insulation with optimised function made of durable elastic EPP;
100 % insulated valves and fittings - excellent ventilation and cooling of the pump, minimal heat losses.

Airstop in the flow for permanent deaeration of the heat transfer medium.

Solar pressure relief valve 6 bar, pressure gauge resistant to high temperature 0-6 bar with valve, fill and drain valve for flushing and filling, flat sealing connection for an expansion tank.

Full metal solar thermometer, 0-160 °C can be pulled off, with immersion sleeve, integrated in the ball valve.

Fully assembled with flat gaskets.

With Wilo solar circulation pump already installed and prewired.

Pump can be isolated, so that it can be replaced without draining system.

Volumetric flowmeter Flowmeter with adjustable flow limiter and function control device, for temperatures up to 120 °C, measuring range 3-22 l/min.

Flush and fill valves integrated two fill and drain valves (on the flowmeter and on the safety group) permit flushing and filling the system.
