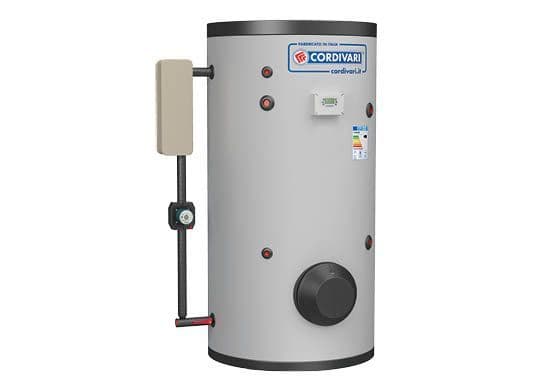

Cordivari Piastraterm SLB WB Hard Insulation

Cordivari Polywarm coated domestic hot water accumulation tank with external stainless steel 316L blazed plate heat exchanger and pump.

APPLICATION:
Production and storage of domestic hot water (DHW).

MATERIAL:
Mild steel Polywarm® coated (Attestation ACS – SSICA – EN 16421 – WRAS).

HEAT EXCHANGER:
SLB brazed plate exchanger in stainless steel 316L, insulated, supplied not mounted on the tank.

INSULATION:
Models 200/500 (HARD FOAM): High thermal insulation with ecological polyurethane hard foam.
Models 80/2000 (DISMOUNTABLE SOFT): NOFIRE® polyester fleece 100% made of recyclable material, with high thermal insulation. Fire resistance class B-s2d0 according to EN 13501.
Grey PVC external lining.

CATHODE PROTECTION:
Magnesium anode. Models > 1500 n° 2 magnesium anodes.

DRAIN:
External confluence through drain connection. Models > 1000 external confluence through drain pipe.

GASKET- FLANGE PLATE:
Silicone gaskets suitable for water intended for human consumption (tested according to 98/83/CE), max temperature up to 200°C. Mild steel inspection flange plate with Polywarm®.
