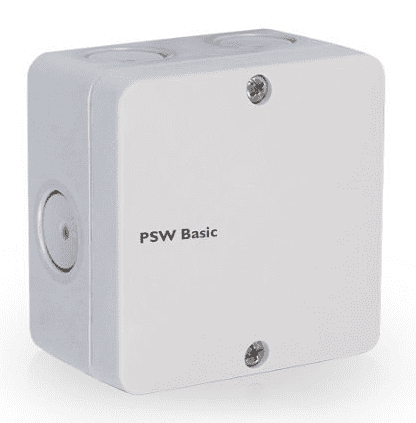

PSW Basic - Pump Signal converter

The PSW Basic is small, easy to install and simple to connect. It covers a large part of the most common signal combinations. It converts the signal of a speed-controlling semiconductor relay into either a PWM or a 0-10 V signal, both of which are inverted if necessary.

For use with solar and heating pumps
PWM or 0-10 V output signal
Inversion of the output signal is possible
Robust and dripping water-protected housing

Technical Data:
Inputs: bursts, phase cutting
Outputs: PWM / 0-10 V
PWM frequency: 625 Hz +-15 %
PWM voltage: 11 V
Power supply: 220 ... 240 V~ (50 ... 60 Hz)
Supply connection: type Y attachment
Power consumption: max. 1.5 VA
Housing: plastic
Protection type: IP 65 / EN 60529
Ambient temperature: 0 ... 50 °C
Dimensions: 80 x 80 x 53 mm
