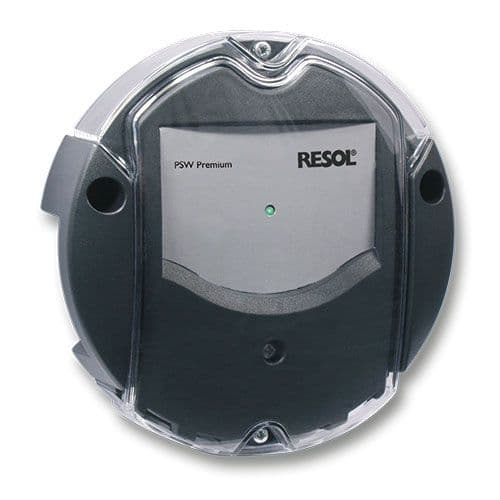

PSW Premium - Pump Signal Converter

The functionality of the PSW Premium is very similar to that of the PSW Basic, but it is additionally equipped with a relay output for the power supply of the pump. Moreover, it has an overrun function to reduce the number of switching processes for the high-efficiency pump.

For use with solar and heating pumps
PWM or 0-10 V output signal
Inversion of the output signal is possible
Pump status display

Technical Data:
Inputs: bursts, phase cutting
Outputs: 1 semiconductor relay, 1 PWM, 1 0-10 V
PWM frequency: 625 Hz +-2,5 %
PWM voltage: 11 V
Power supply: 220 ... 240 V~ (50 ... 60 Hz)
Power consumption: max. 1.7 VA
Housing: plastic
Protection type: IP 20 / EN 60529
Ambient temperature: 0 ... 40 °C
Dimensions: Ø 130 mm
