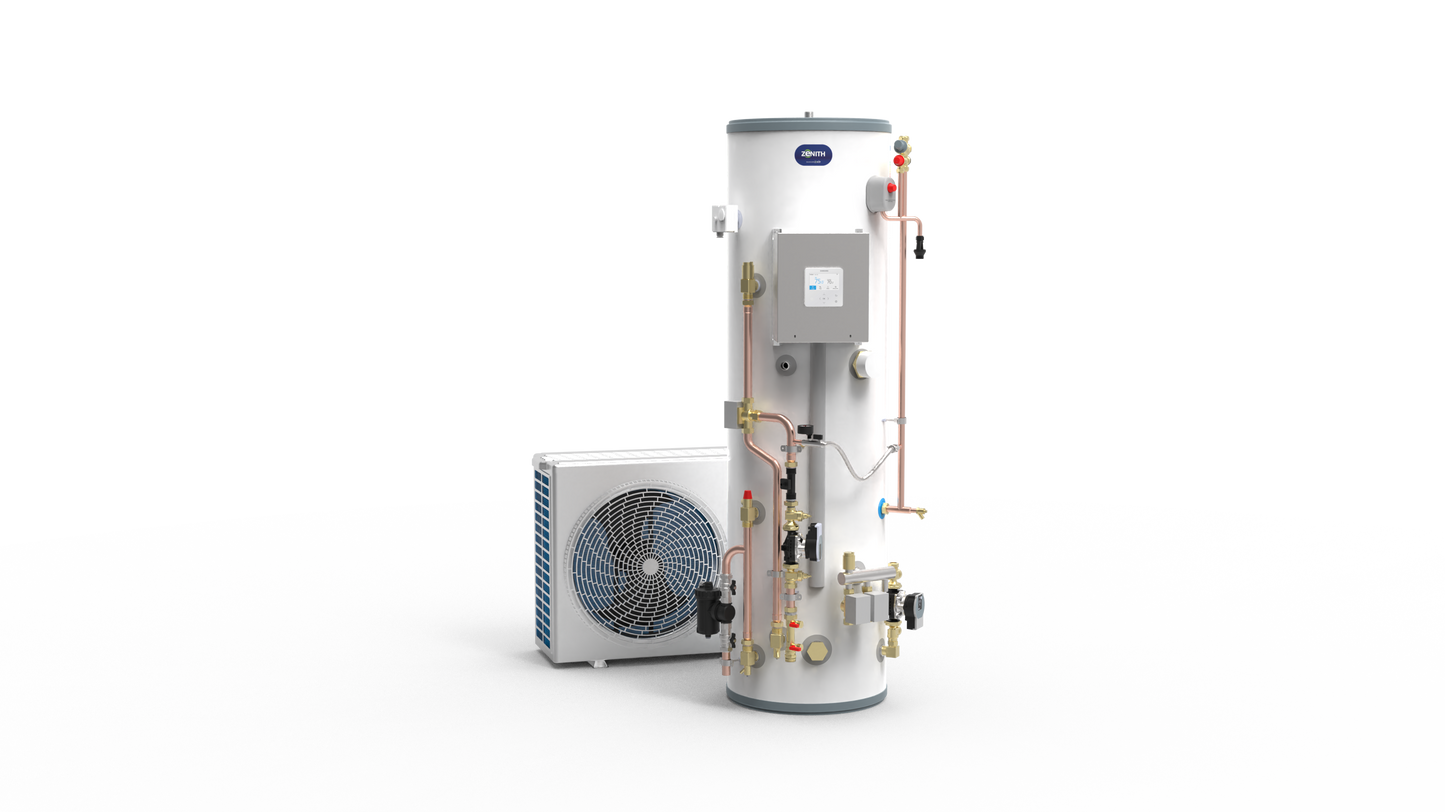

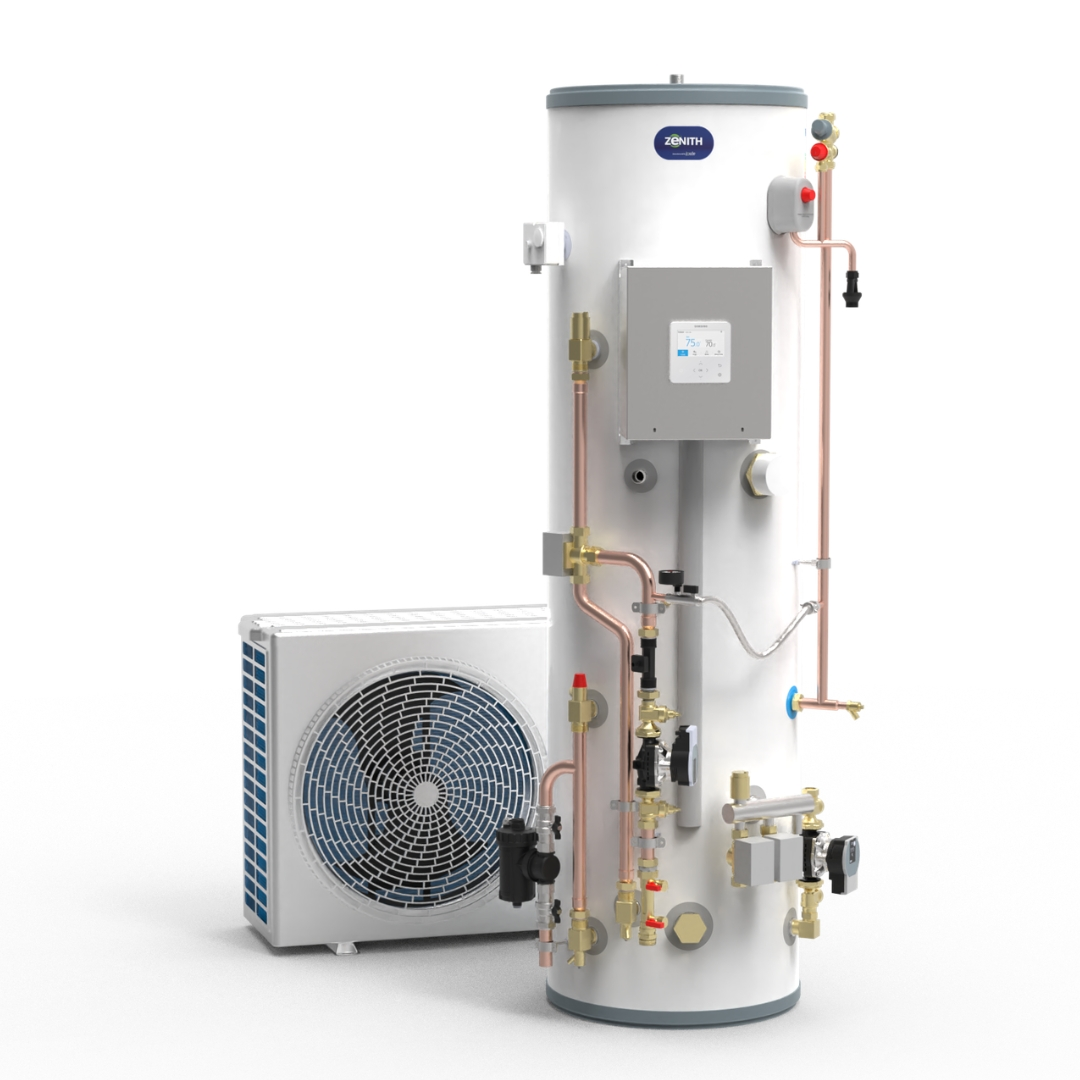

Samsung Gen 6 Zenith Pre Plumb Pack

Joule heat pump packages are designed to make renewable heating simple, efficient and reliable. Combining high-performance air source heat pumps with expertly engineered pre-plumbed cylinders and accessories to offer a complete, ready-to-install solution.

Each package is tailored to reduce installation time, improve efficiency and deliver long term value, backed by local engineer support across the UK.

Samsung Gen 6 R32 Monobloc Heat Pump (5kW-16 kW)

• Compatible with all low- temperature heating systems
• High seasonal energy efficiency
• Simple to install and easy to control
• Operate in outdoor temps as low as -20^oC
• Maintains high capacity even in cold conditions

Joule Zenith Cylinder (150L – 300L)

• Smooth Tube High Efficiency Coil
• Capacities including slim, standard and max
  • Slim (compact and space saving)
  • Standard (balancing size and performance)
  • Max (High capacity for larger systems)
• 2 Heating Zones plumbed and wired as standard
• Pre-mounted MIM wiring centre and system controller
• Pre-fitted magnetic filter
• Part factory commissioned
• Integral buffer tank provides system volume to assist defrost and improve system efficiency

Accessories Included with all pre-plumbs

• 1” Y pattern strainer – 1 pc
• 750mm Insulated Hoses – 2pcs
• Insulated Hose Washers – 4 pcs
• 28mm Isolation Valves – 2pcs
