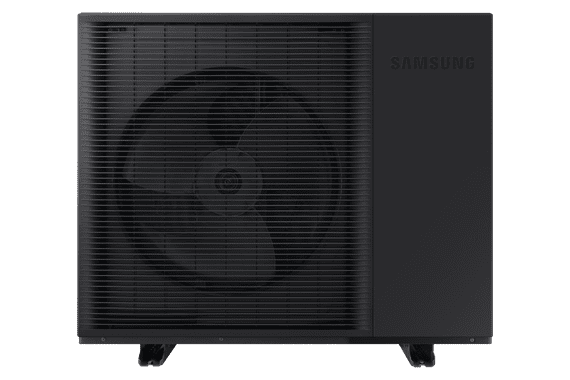

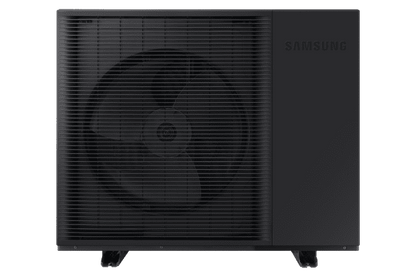

Samsung Mono R290 Gen 7

*IMPORTANT NOTICE - Samsung MIM Controller 78100210 or 78100115 required with this Samsung heat pump*

Available in 1 and 3 Phase.

Samsung’s newest addition to its EHS heat pump line-up, the EHS Mono R290, offers a new home solution for residential homes. The Samsung EHS Mono R290 Heat Pump uses R290 as its refrigerant. R290 has a much lower Global Warming Potential (GWP) of only 3 when compared to other refrigerants R32 and R410A.

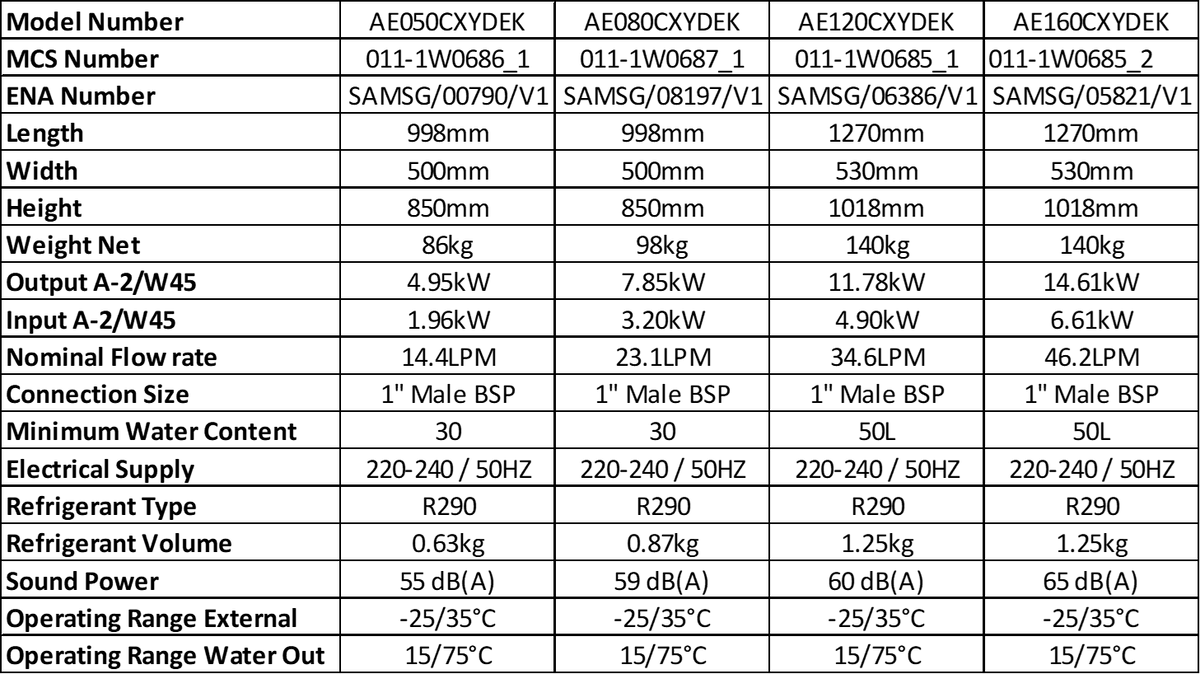

The Samsung EHS Mono R290 Heat Pump is available in a broader range of capacities fitting with varying project requirements – 5, 8, 12, and 16 kW. The 5 and 8 kW units are only 850mm in height, compared to the larger 12 and 16 kW units which measure approximately 1000mm. It complements any outdoor living space with its sleek and compact design.

Higher Hot Water Temperature:

Many older houses in Europe are still using radiators which require a hot water temperature of 65°C or higher to heat rooms effectively. The new Samsung EHS Mono R290 Heat Pump combines advanced features to consistently provide hot water of up to 75°C for domestic heating purposes. This makes it a suitable heating system replacement in older residential spaces that have been previously dependent on gas boilers for their heating needs. Additionally it can supply domestic hot water of up to 70°C2 when the outdoor temperature is as low as -10°C without using the booster heater.

Quiet Operation:

Powered by a combination of innovative noise reducing technologies, the Samsung EHS Mono R290 Heat Pump operates quietly with noise levels as low as 35 d(BA) using a 4-step Quiet Mode. This heat pump’s outdoor unit features a double-layered, sound insulation system fitted with a patented Groove Grid Felt design, which effectively blocks and absorbs noise produced by compression parts and vibrations.

Aesthetic Design:

The Samsung EHS Mono R290 Heat Pump is styled in a dark grey colour which complements the current design trend for modern building exteriors and adds elegance to a multitude of outdoor facades from renovation builds to luxury homes. The outdoor unit, approximately 1000mm or 850mm in height, is fitted with a new slanted black grille composition which screens its inner mechanics from sight.

SmartThings Energy Integration:

SmartThings Energy offers the ultimate home energy management systems, and real energy savings through rich insights, energy saving automations, and support for users to move towards a net zero home. Once connected, users can monitor their energy usage and with the saving mode potentially reduce their energy consumption.
