SolarBloc Maxi

Please note:
In order to guarantee a trouble-free function, it is essential to carry out a hydraulic dimensioning/check of the solar installation.

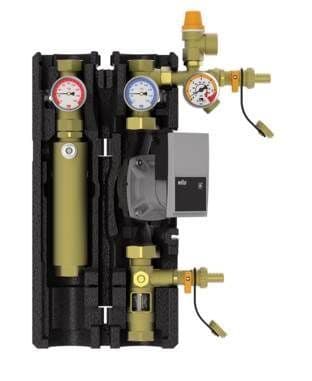

SolarBloC maxi Basic is a compact and completely pre-mounted solar station
All fluid-carrying parts are made of brass, fully assembled, self-sealing or flat-sealing
All connections 1" internal thread
Steel wall bracket for simple assembly, the solar station can be plugged in
Full port ball valves
Check valve in the flow and return ball valve, can be opened, 2 x 200 mm wc, especially for solar systems,
prevents gravity circulation
Large ball valve handles, easy handling, and visible closing position
All-metal thermometers
0-160 °C, can be pulled off, with an immersion sleeve integrated in the ball valve
Airstop in the flow line for permanent deaeration of the heat transfer medium
Design insulation with optimised function made of durable elastic EPP
100 % insulation of fittings, ventilation opening to cool the pumps
Solar safety group solar pressure relief valve 6 bars, pressure gauge resistant to high temperatures 0-6 bars with valve, flat sealing connection for an expansion tank
Premounted solar standard pump or high-efficiency pump by Wilo or Grundfos
Pump can be isolated so that it can be replaced without draining
Integrated flush and fill unit
Two fill and drain valves permit flushing and filling the system
Flowmeter with function control device, in the return line, up to 120 °C, measuring range 5-40 l/min

Operating data:
Max. pressure: 6 bars
Max. operating temperature: 120 °C

Equipment:
Sensors: 2 x Pt1000 (enclosed, only in stations with a controller)
Flow meter: Flowmeter DN 25 (1"), 5-40 l/min
Measuring range: 5-40 l/min
Check valves: 2 × 200 mm wc
Airstop: yes
Pressure gauge: 0-6 bar, temperature-resistant

Dimensions:
Connections: 1" internal thread
Installation length: 395 mm
Width: 334 mm
Height: 474 mm
Height with controller: 656 mm
Centre distance: 100 mm
Nominal diameter: DN 25 (1")

Materials:
Valves and fittings: Brass
Gaskets: AFM 34 / EPDM
Insulation: EPP shells
Check valves: Brass
