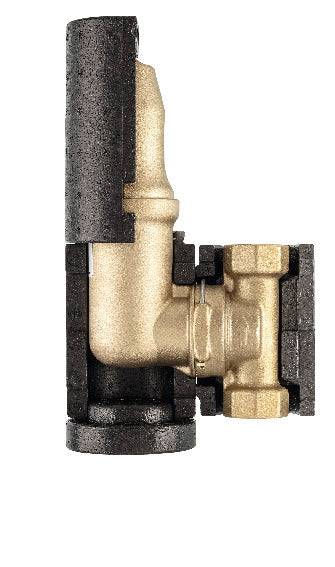

IMI Zeparo Turnable 1" de air with jacket

The IMI Zeparo ZTVI is a high-performance microbubble de-aerator designed for hydronic heating and cooling systems. It delivers exceptional air and microbubble removal to improve system efficiency, reduce noise and protect key components.

Its unique 360° turnable design allows independent rotation, enabling horizontal or vertical installation. It offers maximum flexibility for new builds and retrofit projects.

Manufactured from high-quality brass and supplied with an insulation jacket, the Zeparo ZTVI enhances energy efficiency while ensuring long-term durability in both domestic and commercial applications.

Key Features:

• Advanced microbubble air separation
• 360° turnable body for flexible installation
• Horizontal and vertical mounting

• Brass construction with an insulation jacket
• Improves efficiency and reduces system noise

A reliable solution for cleaner, quieter and more energy-efficient heating systems.

Technical:

• Max admissible Temperature: 110 degrees C
• Min admissible Temperature: -10 degrees C
• Max admissible Pressure: 10bar
• Antifreeze agents up to 50%
• Nominal Flow DN20 1.15 m3hr
• Nominal Flow DN25 1.8 m3hr
• Nominal Flow DN32 3.0 m3hr
