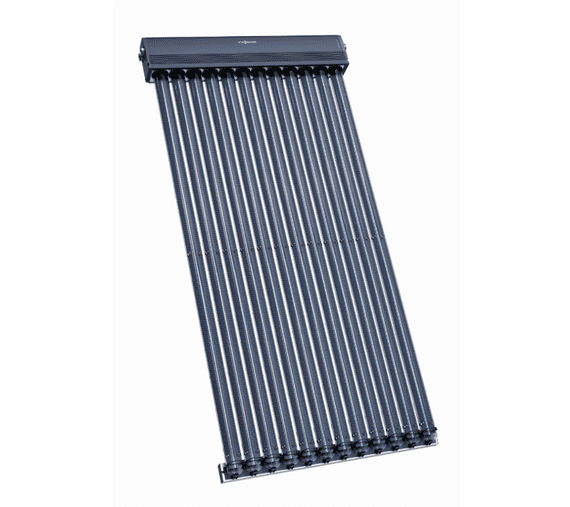

Vitosol 300-TM 1.5sqm Tube Kit Vertical

Low Stock

Product Code: 93830011

Vacuum Tube kit based on Viessmann 300-TM solar thermal tubes. The kit is totally complete and is designed to mount vertically on a pitched pantile roof, plain tile, slate or flat on a flat roof.

Choose Roof Type Pantile Plain Tile Flat on Flat

£3,380.00 GBP

Sold out

Description

Vacuum Tube kit based on Viessmann 300-TM solar thermal tubes. The kit is totally complete and is designed to mount on a pitched pantile roof, plain tile, slate or flat on a flat roof.

Kit includes:

Vitosol 300-TM 1.51sqm manifold
Vitosol 300-TM SP3C tubes (set of 12)
Viessmann Connection Set
Spare parts set
Resol high efficiency twin line pump station with integrated SLL controller OR
PAW high efficiency twin line pump station & separate Resol CS4 controller (need to specify)
Expansion vessel 18L
Expansion vessel mounting kit
Discharge container
Discharge hose
Solar Fluid
Flexipipe 2 in 2 insulated DN16 10m (15m or 25m available for additional cost)
Flexipipe Brackets
DN16 Backnut, circlip & washer
DN16 Coupling set
Self-Seal Double Nipple DN16 x ¾
Clamping Screw ¾ x 22mm
Smooth Tube Adaptor DN16 x 22mm
High Temperature Insulation 19mm x 22mm
SP10 Lightning protector
Lead base flashing twin silicone boot
