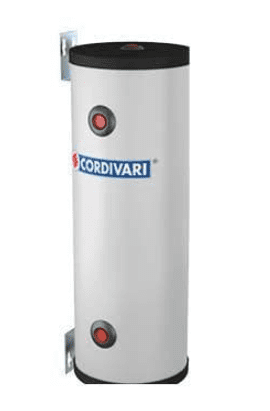

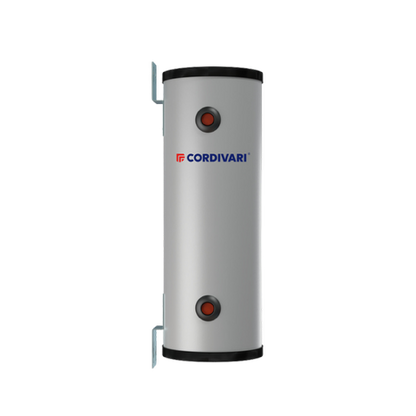

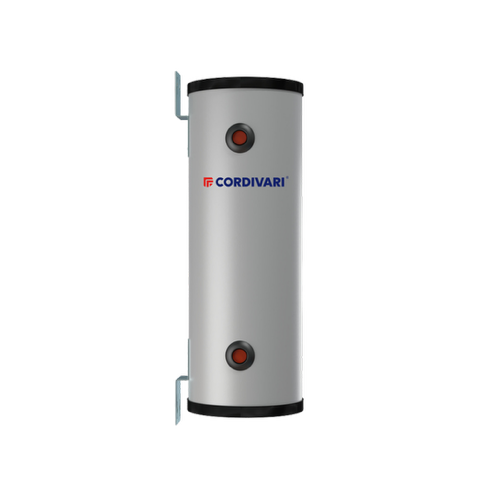

Volano Termico PDC Wall Mounted (Volano UP 4 Connections)

A wall-hung buffer tank for air source heat pumps available in 8L,12L, 25L or 50L. This provides a neutral point for system flow rates to be independently achieved on both sides of the header. See the table below for System connections

MATERIAL:
Mild steel.

EXTERNAL LINING:
PVC plastic grey.

INSULATION:
High thermal insulation with ecological hard
polyurethane foam.

WARRANTY
2 years

For the Volano range of heat pump buffers, you will need the following fittings:

Wall-mounted:
8L 4No x 1" & 2No x 1" for the air vent and drain
12L 4No x 1" & 2No x 1" for the air vent and drain
25L 4No x 1 ¼" & 2No x 1" for the air vent and drain
50L 4No x 1 ¼" & 2No x 1" for the air vent and drain
