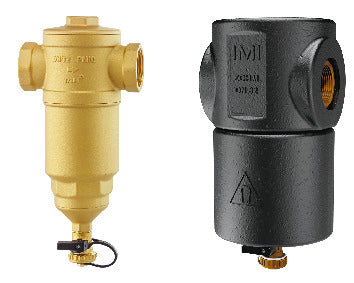

IMI Zeparo 1" Cyclone Filter with Jacket

Dirt & Magnetite Separator with Cyclonic Technology

The IMI Zeparo Cyclone is a high-efficiency dirt and magnetite separator for heating and cooling systems up to 300 kW. Using advanced cyclonic technology, separation performance increases with flow velocity while maintaining a stable, low-pressure drop.

Supplied with a powerful magnet accessory, it captures both non-magnetic debris and fine magnetic sludge, including black iron oxide. The included insulation jacket helps maintain system efficiency.

Designed to protect boilers, pumps, valves, heat exchangers, chillers and heat meters, it reduces breakdown risk, prevents clogging and lowers maintenance costs. Collected dirt can be quickly flushed via the integrated drain valve without dismantling.

Suitable for horizontal or vertical installation, making it ideal for new builds and retrofit projects.

Key Features:

• Cyclonic dirt and magnetite separation
• Magnetic sludge removal
• Stable low-pressure drop
• Up to 300 kW system output
• Insulation jacket included
• Horizontal and vertical mounting
• Easy, tool-free maintenance

Technical:

• Max admissible temperature: 120 degrees C
• Min admissible temperature: -10 degrees C
• Max admissible pressure: 10bar
• Antifreeze agents up to 50%
• Closed heating systems and chilled water systems
