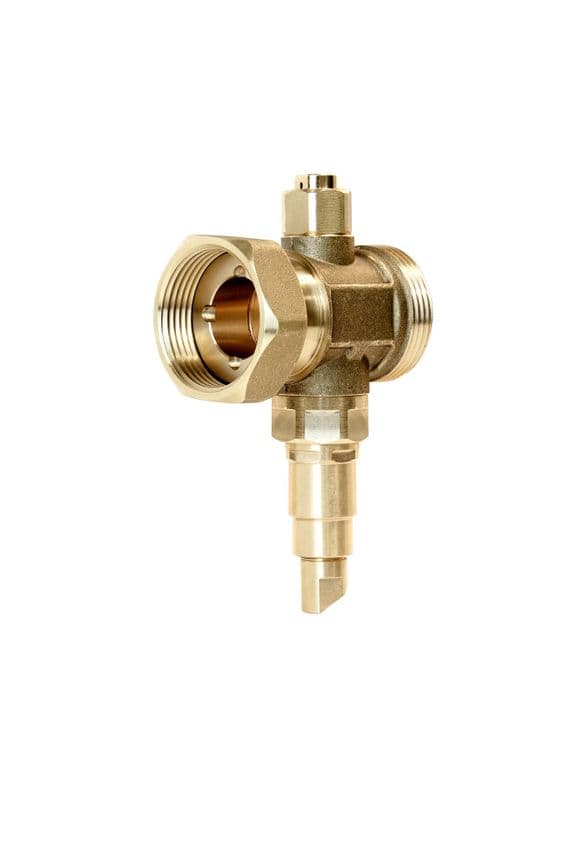

Inta Zero Antifreeze Valve 35mm

Inta Zero Anti-Freeze Valves have been specifically designed to quickly and accurately react to the water temperature in the heat pump circuit and do not need the influence of the ambient temperature to operate.

Inta Zero Anti-Freeze Valves will still maintain correct operation and discharge the water at the same temperature when a system is correctly insulated.

A protective ring has been included in the construction to prevent system debris from clogging the operation of the valve.

Double O-rings and reduced surface friction treatment ensure correct operation and reliability even after years of non-movement.

• Max Inlet Pressure (Static): 10 Bar
• Working Temperature Range: 0 to 80°C
• Ambient Temperature Range: -30 to 60°C
• Opening Temperature: 3°C
• Closing Temperature: 4°C
• Sensitivity: ±1°C
• Medium: Water
• Max Discharge Flow Rate @ 3 Bar: 1.5 L/H
