Information
MATERIAL
Mild steel.
EXTERNAL LINING
PVC plastic grey.
INSULATION
High thermal insulation with ecological hard
polyurethane foam.
WARRANTY
2 years
Technical Info
For the Volano range of heat pump buffers you will need the following fittings:

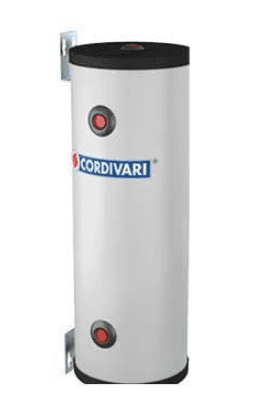

A wall hung buffer tank for air source heat pumps available in 8L,12L, 25L or 50L. This provides a neutral point for system flow rates to be independently achieved on both sides of the header. See the table below for System connections
MATERIAL
Mild steel.
EXTERNAL LINING
PVC plastic grey.
INSULATION
High thermal insulation with ecological hard
polyurethane foam.
WARRANTY
2 years
Technical Info
For the Volano range of heat pump buffers you will need the following fittings:
Wall mounted
12L 4No x 1 & 2No x 1 for the air vent and drain
25L 4No x 1 ¼ & 2No x 1 for the air vent and drain
50L 4No x 1 ¼ & 2No x 1 for the air vent and drain
Floor mounted
100L 6 x 1 plus 1 ¼ including the air vent
200L 6 x 1 plus 1 ¼ including the air vent
300L 7 x 1 ¼ including the air vent
500L 7 x 1 ¼ including the air vent
The fittings for 8l and 12l are available as a kit Click here
The fittings for 25l and 50l are available as a kit Click here
Specifications
-
MPN:3070160920006
-
Product Code:54531008
